12/24kV 254mm Two Links Epoxy Resin Insulated Bushing for cable branch box

The product is made of high quality epoxy resin material, with good processing performance, thermal properties and mechanical properties.
The product has low shrinkage, good cracking resistance and high bending strength.
The overall color of the product is uniform and consistent without obvious color difference.
The surface of the product is smooth, bright, no spots, no dark bubbles and other phenomena.
The conductive rod of the product is made of red copper T2 with a diameter of 25mm.
All the threads of the product are 100% qualified by the thread plug gauge inspection.
Each product has passed the leak detection by helium mass spectrometer leak detector, and the leak rate of the leak detection results is below 1X10-10Pa.m3/s to ensure qualified leak detection.
Apply frequency withstand voltage of 48KV/1 min to the product without discharge and breakdown.

Categories: , Tags: ,

Description

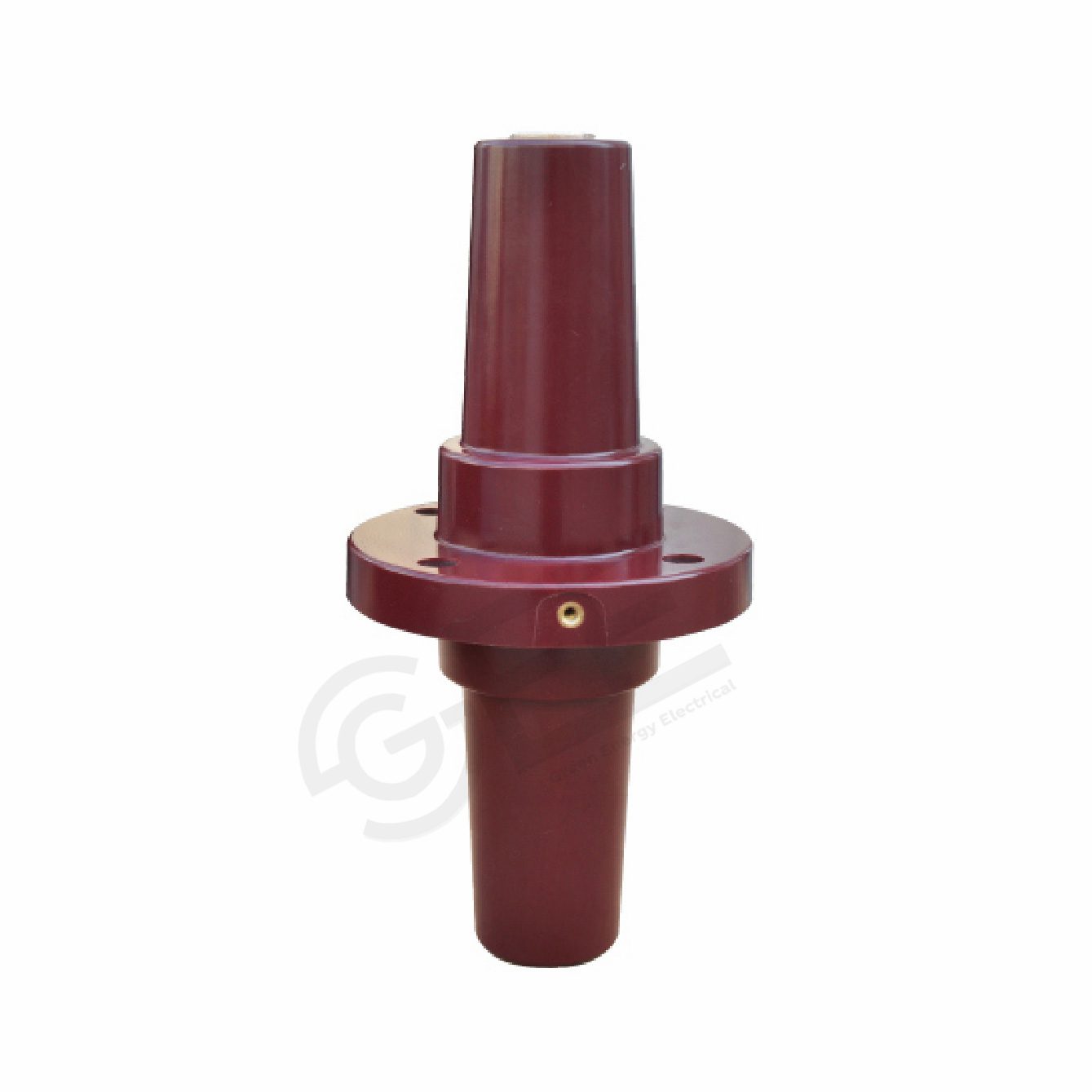

12/24kV 254mm Two Links Epoxy Resin Insulated Bushing for cable branch box插图1

General Description

The product is made of high quality epoxy resin material, with good processing performance, thermal properties and mechanical properties.
The product has low shrinkage, good cracking resistance and high bending strength.
The overall color of the product is uniform and consistent without obvious color difference.
The surface of the product is smooth, bright, no spots, no dark bubbles and other phenomena.
The conductive rod of the product is made of red copper T2 with a diameter of 25mm.
All the threads of the product are 100% qualified by the thread plug gauge inspection.
Each product has passed the leak detection by helium mass spectrometer leak detector, and the leak rate of the leak detection results is below 1X10-10Pa.m3/s to ensure qualified leak detection.
Apply frequency withstand voltage of 48KV/1 min to the product without discharge and breakdown.

Product Information

12/24kV 254mm Two Links Epoxy Resin Insulated Bushing for cable branch box插图2
