12/24kV 285mm Two Links Epoxy Resin Insulated Bushing for GIS

• Selection of high quality epoxy resin material, with good processing performance, thermal properties and mechanical properties.
• Products with low shrinkage, good cracking resistance and high bending strength.
• Product overall color uniform uniform, no obvious color difference.
• The surface of the product is smooth, bright, no spots, no dark bubbles and other phenomena.
• The conductive rod of the product is made of red copper T2 with a diameter of 25mm.
• All the threads of the product are 100% qualified by the thread plug gauge inspection.
• Product gas-tight performance test through helium mass spectrometry leak detector, the leak detection results of the leak rate of 1X10-10Pa.m3 /s below, the product leak detection qualified.
• Product work frequency voltage test 48kV/1 min no discharge, no breakdown phenomenon.
• For the State grid winning the bid, there are high requirements of the customer, our company can provide effective solutions.
• Flat plate structure of flange surface is available.

Description

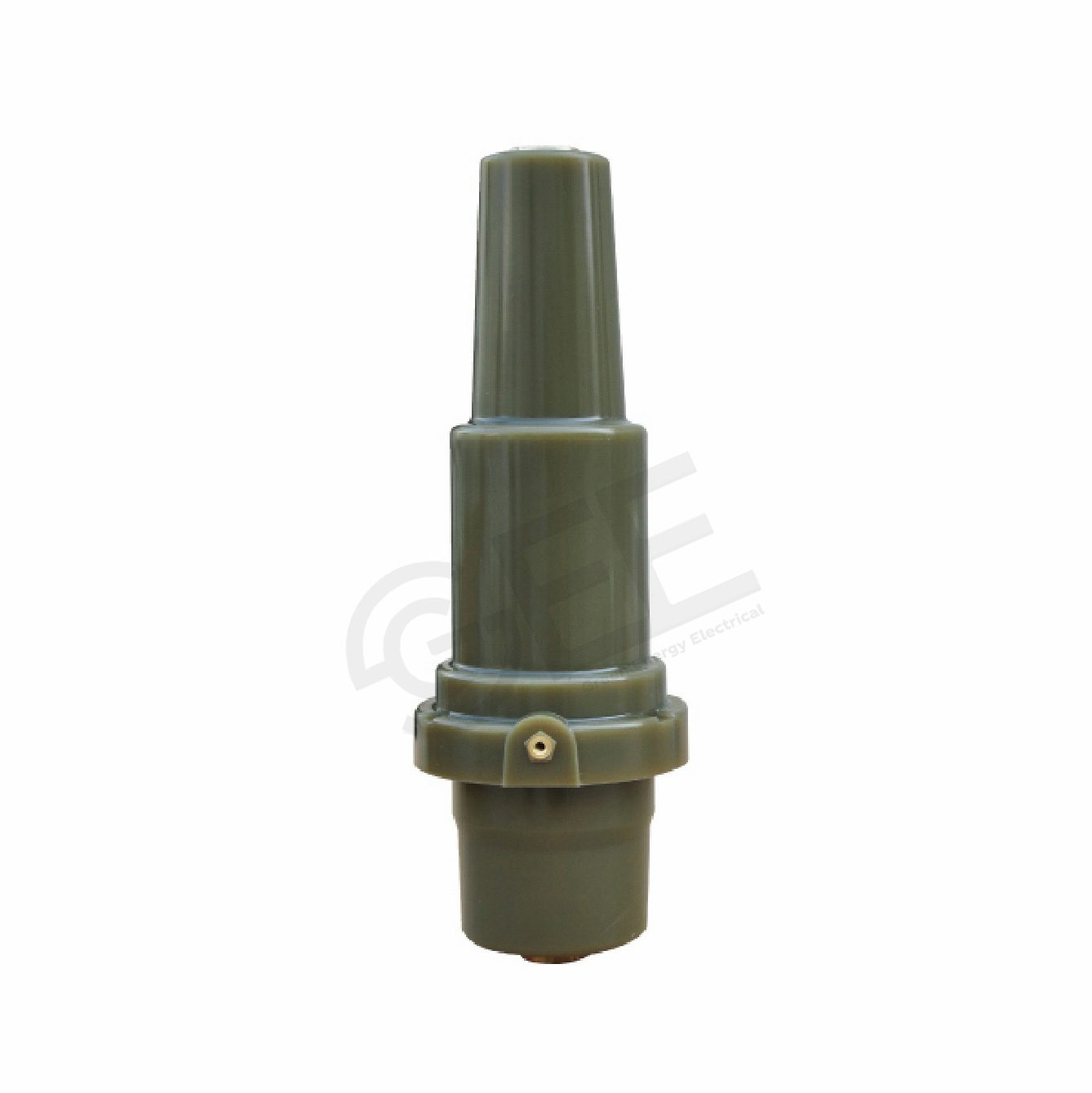

12/24kV 285mm Two Links Epoxy Resin Insulated Bushing for GIS插图

General Description

• Selection of high quality epoxy resin material, with good processing performance, thermal properties and mechanical properties.
• Products with low shrinkage, good cracking resistance and high bending strength.
• Product overall color uniform uniform, no obvious color difference.
• The surface of the product is smooth, bright, no spots, no dark bubbles and other phenomena.
• The conductive rod of the product is made of red copper T2 with a diameter of 25mm.
• All the threads of the product are 100% qualified by the thread plug gauge inspection.
• Product gas-tight performance test through helium mass spectrometry leak detector, the leak detection results of the leak rate of 1X10-10Pa.m3 /s below, the product leak detection qualified.
• Product work frequency voltage test 48kV/1 min no discharge, no breakdown phenomenon.
• For the State grid winning the bid, there are high requirements of the customer, our company can provide effective solutions.
• Flat plate structure of flange surface is available.

Product lnformation

12/24kV 285mm Two Links Epoxy Resin Insulated Bushing for GIS插图1
