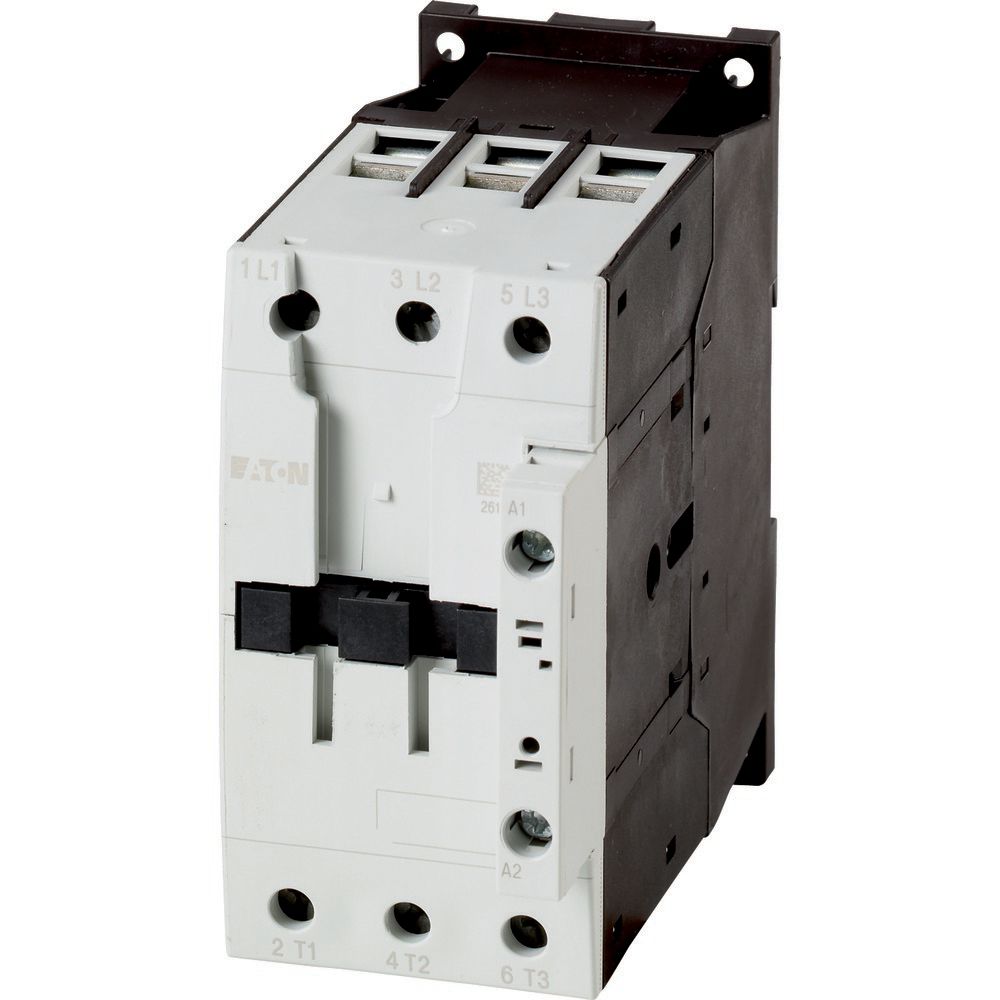

EATON MOELLER® SERIES DILM CONTACTOR 277766

Eaton Moeller® series DILM Contactor, 3 pole, 380 V 400 V 18.5 kW, 230 V 50 Hz, 240 V 60 Hz, AC operation, Screw terminals DILM40(230V50HZ,240V60HZ)

Description

General specifications Product Name Eaton Moeller® series DILM contactor
Catalog Number 277766
Model Code DILM40(230V50HZ,240V60HZ)
EAN 4015082777661
Product Length/Depth 132.1 mm
Product Height 115 mm
Product Width 55 mm
Product Weight 0.872 kg
Warranty Not Applicable
Compliances CE Marked
Certifications IEC 60947-4-1 CSA Std. C22.2 No. 14-05 UL 508 EN 60947-4-1 CSA Certified UL Listed VDE 0660 CSA IEC/EN 60947 UL 60947-4-1 CSA-C22.2 No. 60947-4-1-14 CE IEC/EN 60947-4-1 UL File No.: E29096 CSA File No.: 012528 UL UL Category Control No.: NLDX CSA Class No.: 2411-03, 3211-04
Catalog Notes Contacts according to EN 50012
Product specifications Terminal capacity (flexible with ferrule) 2 x (0.75 – 2.5) mm², Control circuit cables 2 x (0.75 – 25) mm², Main cables 1 x (0.75 – 2.5) mm², Control circuit cables 1 x (0.75 – 35) mm², Main cables
Rated operational current for specified heat dissipation (In) 40 A
10.11 Short-circuit rating Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
Rated operational power at AC-3, 380/400 V, 50 Hz 18.5 kW
Conventional thermal current ith (3-pole, enclosed) 45 A
Rated operational power at AC-4, 380/400 V, 50 Hz 9 kW
Rated operational current (Ie) at AC-4, 440 V 18 A
Terminal capacity (copper band) 2 x (6 x 9 x 0.8) mm (Number of segments x width x thickness), Main cables
Rated control supply voltage (Us) at AC, 50 Hz – min 230 V
Conventional thermal current ith at 60°C (3-pole, open) 50 A
10.4 Clearances and creepage distances Meets the product standard’s requirements.
Number of contacts (normally closed) as main contact 0
Short-circuit current rating (high fault at 480 V) 250/150 A, Class J, max. Fuse, SCCR (UL/CSA) 65 kA, CB, SCCR (UL/CSA) 100 A, max. CB, SCCR (UL/CSA) 30/100 kA, Fuse, SCCR (UL/CSA)
Conventional thermal current ith at 55°C (3-pole, open) 55 A
Rated operational power (NEMA) 22 kW
10.2.3.1 Verification of thermal stability of enclosures
Ambient storage temperature – min 40 °C
Rated breaking capacity at 380/400 V 400 A
Short-circuit current rating (basic rating) 10 kA, SCCR (UL/CSA) 250 A, max. CB, SCCR (UL/CSA) 250 A, max. Fuse, SCCR (UL/CSA)
Rated control supply voltage (Us) at AC, 50 Hz – max
Rated breaking capacity at 660/690 V 250 A
Operating temperature -25° to 60°C
Rated operational current (Ie) at DC-1, 220 V
Special purpose rating of elevator control 10 HP, 240 V 60 Hz 3-ph, (UL/CSA) 25 HP, 480 V 60 Hz 3-ph, (UL/CSA) 7.5 HP, 200 V 60 Hz 3-ph, (UL/CSA) 28 A, 240 V 60 Hz 3-ph, (UL/CSA) 30 HP, 600 V 60 Hz 3-ph, (UL/CSA) 32 A, 600 V 60 Hz 3-ph, (UL/CSA) 34 A, 480 V 60 Hz 3-ph, (UL/CSA) 25.3 A, 200 V 60 Hz 3-ph, (UL/CSA)
Ambient operating temperature – max 60 °C
Assigned motor power at 115/120 V, 60 Hz, 1-phase 3 HP
Rated operational power at AC-4, 440 V, 50 Hz 10 kW
Electrical connection type of main circuit Screw connection
Number Of Poles Three-pole
Ambient operating temperature – min -25 °C
10.6 Incorporation of switching devices and components Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
10.3 Degree of protection of assemblies
Application Contactors for Motors
Operating frequency 5000 mechanical Operations/h (AC operated)
Voltage type AC
Short-circuit protection rating (type 1 coordination) at 400 V 125 A gG/gL
Product category Contactors
Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V
Rated operational power at AC-3, 690 V, 50 Hz 23 kW
Power consumption, pick-up, 50 Hz 149 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz
Heat dissipation capacity Pdiss 0 W
Assigned motor power at 460/480 V, 60 Hz, 3-phase 30 HP
Special purpose rating of tungsten incandescent lamps 74 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA) 74 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)
Switching time (AC operated, make contacts, opening delay) – min 8 ms
Continuous ampere rating 63 A
Rated operational current (Ie) at AC-4, 500 V
Rated operational power at AC-3, 240 V, 50 Hz 13.5 kW
Terminal capacity (solid/stranded AWG) Single 14 – 1, double 14 – 2, Main cables 18 – 14, Control circuit cables
10.9.2 Power-frequency electric strength Is the panel builder’s responsibility.
Degree of protection IP00
Overvoltage category III
Switching time (AC operated, make contacts, opening delay) – max 13 ms
Ambient storage temperature – max 80 °C
Pollution degree 3
Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V 60 A
Power consumption, pick-up, 60 Hz 178 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz
Switching time (AC operated, make contacts, closing delay) – max 18 ms
Rated impulse withstand voltage (Uimp) 8000 V AC
Connection Screw terminals
Tightening torque 1.2 Nm, Screw terminals, Control circuit cables 3.3 Nm, Screw terminals, Main cables
Rated operational power at AC-4, 660/690 V, 50 Hz 12 kW
Frame size FS3
Conventional thermal current ith (1-pole, enclosed) 112 A
Rated operational current (Ie) at AC-3, 660 V, 690 V 25 A
Type Full voltage non-reversing contactor
10.2.2 Corrosion resistance
10.2.4 Resistance to ultra-violet (UV) radiation
10.2.7 Inscriptions
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
Switching time (AC operated, make contacts, closing delay) – min 12 ms
Short-circuit protection rating (type 2 coordination) at 400 V 63 A gG/gL
Special purpose rating of ballast electrical discharge lamps 79 A (480V 60Hz 3phase, 277V 60Hz 1phase) 79 A (600V 60Hz 3phase, 347V 60Hz 1phase)
Number of auxiliary contacts (normally open contacts)
Rated operational power at AC-3, 500 V, 50 Hz 28 kW
Shock resistance 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Rated operational current (Ie) at DC-1, 110 V
Assigned motor power at 230/240 V, 60 Hz, 3-phase 15 HP
Drop-out voltage AC operated: 0.6 – 0.3 x UC, AC operated
Power consumption, sealing, 60 Hz 4.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz 19 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz
Resistance per pole 1.9 mΩ
Ambient operating temperature (enclosed) – min 25 °C
Stripping length (control circuit cable) 10 mm
10.12 Electromagnetic compatibility
Amperage Rating 170A
10.2.5 Lifting
Stripping length (main cable) 14 mm
Ambient operating temperature (enclosed) – max
Special purpose rating of resistance air heating 79 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA) 79 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)
Rated control supply voltage (Us) at DC – min 0 V
Short-circuit current rating (high fault at 600 V) 250 A, max. CB, SCCR (UL/CSA) 250/150 A, Class J, max. Fuse, SCCR (UL/CSA) 30 kA, CB, SCCR (UL/CSA) 30/100 kA, Fuse, SCCR (UL/CSA)
Frequency rating 50-60 Hz
10.8 Connections for external conductors
Number of main contacts (normally open contact)
Rated breaking capacity at 220/230 V
Screw size M6, Terminal screw, Main cables M3.5, Terminal screw, Control circuit cables
Rated operational current (Ie) at AC-4, 400 V
Terminals Spring loaded terminals
Short-circuit protection rating (type 2 coordination) at 690 V 50 A gG/gL
Assigned motor power at 575/600 V, 60 Hz, 3-phase 40 HP
Protection Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Power consumption, sealing, 50 Hz 16 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz 4.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz
Rated operational power at AC-3, 440 V, 50 Hz 25 kW
Terminal capacity (stranded) 1 x (16 – 50) mm², Main cables 2 x (16 – 35) mm², Main cables
HP rating – max 3, 7.5/ 10, 15, 30, 40 hp (1/3PH @120, 240/ 208, 240, 480, 600 V)
Rated breaking capacity at 500 V
Rated operational power at AC-3, 415 V, 50 Hz 24 kW
Climatic proofing Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Emitted interference According to EN 60947-1
Connection to SmartWire-DT No
Static heat dissipation, non-current-dependent Pvs 4.1 W
Rated control supply voltage (Us) at DC – max
10.9.3 Impulse withstand voltage
Utilization category AC-3: Normal AC induction motors: starting, switch off during running AC-1: Non-inductive or slightly inductive loads, resistance furnaces AC-4: Normal AC induction motors: starting, plugging, reversing, inching
Coil voltage 230-240 Vac, 50/60 Hz
Rated operational current (Ie) at AC-3, 440 V
10.5 Protection against electric shock
Safe isolation 440 V AC, Between the contacts, According to EN 61140 440 V AC, Between coil and contacts, According to EN 61140
10.13 Mechanical function The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.9.4 Testing of enclosures made of insulating material
Heat dissipation per pole, current-dependent Pvid 2.2 W
Actuating voltage 230 V 50 Hz, 240 V 60 Hz
Operating temperature – min
Rated operational current (Ie) at AC-4, 660 V, 690 V 14 A
Equipment heat dissipation, current-dependent Pvid 6.6 W
Assigned motor power at 200/208 V, 60 Hz, 3-phase 10 HP
Pick-up voltage 0.8 – 1.1 V AC x Uc
Suitable for Also motors with efficiency class IE3
Operation Non-reversing
Conventional thermal current ith at 40°C (3-pole, open)
Terminal capacity (solid) 1 x (0.75 – 16) mm², Main cables 2 x (0.75 – 2.5) mm², Control circuit cables 2 x (0.75 – 16) mm², Main cables 1 x (0.75 – 4) mm², Control circuit cables
Number of auxiliary contacts (normally closed contacts)
Interference immunity
Power consumption 18 kW
10.2.3.2 Verification of resistance of insulating materials to normal heat
Operating temperature – max
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Lifespan, mechanical 10,000,000 Operations (AC operated)
Short-circuit protection rating (type 1 coordination) at 690 V 80 A gG/gL
Rated making capacity up to 690 V (cos phi to IEC/EN 60947) 560 A
Rated operational power at AC-4, 240 V, 50 Hz 5.5 kW
Rated operational power at AC-4, 500 V, 50 Hz 11 kW
Voltage rating 400 V
Rated operational current (Ie) at DC-1, 60 V
Rated operational power at AC-4, 220/230 V, 50 Hz 5 kW
Rated operational voltage (Ue) at AC – max 690 V
Rated control supply voltage (Us) at AC, 60 Hz – min 240 V
10.7 Internal electrical circuits and connections
10.10 Temperature rise The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Switching capacity (main contacts, general use) 63 A, Maximum motor rating (UL/CSA)
Conventional thermal current ith at 50°C (3-pole, open) 57 A
Rated operational current (Ie) at AC-3, 500 V
Assigned motor power at 230/240 V, 60 Hz, 1-phase 7.5 HP
Screwdriver size 2, Terminal screw, Pozidriv screwdriver 0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
Duty factor 100 %
Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V
Conventional thermal current ith of main contacts (1-pole, open) 125 A
Rated control supply voltage (Us) at AC, 60 Hz – max
Arcing time 10 ms
Rated operational power at AC-4, 415 V, 50 Hz 9.5 kW
Rated insulation voltage (Ui)
Altitude Max. 2000 m
Catalogs Product Range Catalog Switching and protecting motors
 Switching and protecting motors – catalog
 Product overview for machinery
 SmartWire-DT Catalog
Certification reports  DA-DC-00004070.pdf
 DA-DC-00004229.pdf
 0000SPC-571
Characteristic curve  eaton-contactors-component-dilm-characteristic-curve-003.eps
 eaton-contactors-switch-dilm-characteristic-curve.eps
 eaton-contactors-switch-dilm-characteristic-curve-002.eps
 210U038
 2100DIA-7
 2100DIA-8
Drawings  210N018
 eaton-contactors-mounting-dilm-dimensions.eps
 eaton-contactors-dilm-dimensions-002.eps
 210T015
 eaton-contactors-dilm-dimensions-012.eps
 210X214
 eaton-contactors-mounting-dilm-dimensions-002.eps
 210N017
 eaton-contactors-mounting-dilm-3d-drawing.eps
eaton-general-ie-ready-dilm-contactor-standards.eps
 eaton-contactors-dilm-3d-drawing-011.eps
 210I194
 2100DRW-96
eCAD model  ETN.DILM40(230V50HZ,240V60HZ)
Installation instructions  IL03407033Z
mCAD model  DA-CD-dil_m40_72
 DA-CS-dil_m40_72
PEP Eco-passport  EATO-00027-V01.01-EN
Specifications and datasheets  Product Data Sheet – 277766
 Eaton Specification Sheet – 277766
System overview  eaton-contactors-dilm-contactor-system-overview.eps
 210O154
Wiring diagrams  eaton-contactors-contact-dilm-wiring-diagram-003.eps
 210S045
Date Thu Jul 20 2023
