| General specifications |
Product Name |

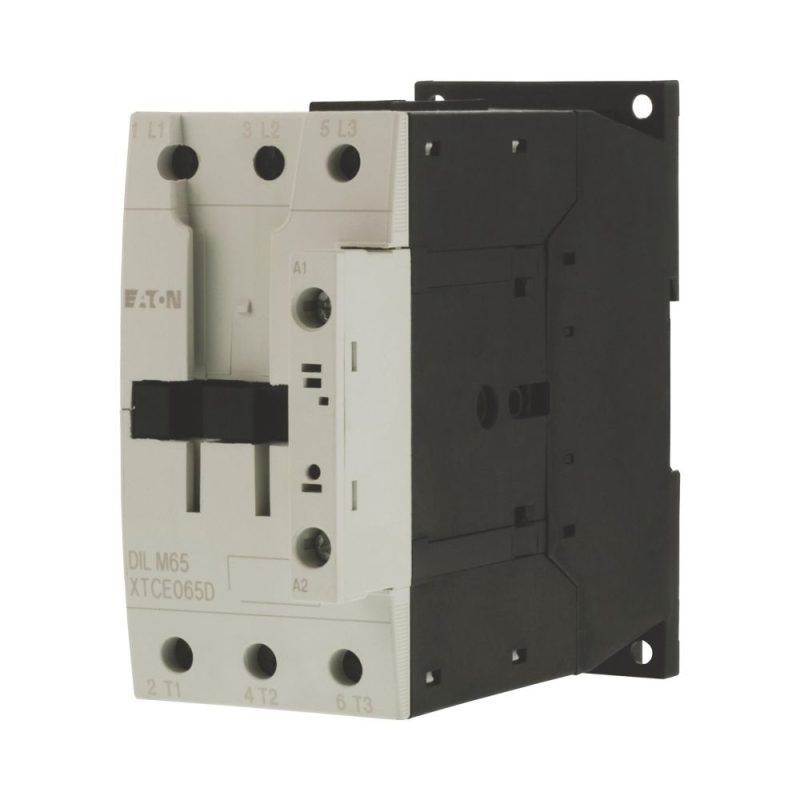

Eaton Moeller® series DILM contactor |
|
Catalog Number |
277898 |
|
Model Code |
DILM65(24V50/60HZ) |
|
EAN |
4015082778989 |
|
Product Length/Depth |
132.1 mm |
|
Product Height |
115 mm |
|
Product Width |
55 mm |
|
Product Weight |
0.872 kg |
|
Certifications |
CE CSA File No.: 012528 UL UL 60947-4-1 IEC/EN 60947 VDE 0660 CSA-C22.2 No. 60947-4-1-14 UL Category Control No.: NLDX CSA IEC/EN 60947-4-1 UL File No.: E29096 CSA Class No.: 2411-03, 3211-04 |
|
Catalog Notes |
Contacts according to EN 50012 |
| Product specifications |
Terminal capacity (flexible with ferrule) |
1 x (0.75 – 35) mm², Main cables 2 x (0.75 – 25) mm², Main cables 1 x (0.75 – 2.5) mm², Control circuit cables 2 x (0.75 – 2.5) mm², Control circuit cables |
|
Rated operational current for specified heat dissipation (In) |
65 A |
|
10.11 Short-circuit rating |
Is the panel builder’s responsibility. The specifications for the switchgear must be observed. |
|
Rated operational power at AC-3, 380/400 V, 50 Hz |
30 kW |
|
Conventional thermal current ith (3-pole, enclosed) |
72 A |
|
Rated operational power at AC-4, 380/400 V, 50 Hz |
12 kW |
|
Rated operational current (Ie) at AC-4, 440 V |
25 A |
|
Terminal capacity (copper band) |
2 x (6 x 9 x 0.8) mm (Number of segments x width x thickness), Main cables |
|
Rated control supply voltage (Us) at AC, 50 Hz – min |
24 V |
|
Conventional thermal current ith at 60°C (3-pole, open) |
80 A |
|
10.4 Clearances and creepage distances |
Meets the product standard’s requirements. |
|
Number of contacts (normally closed) as main contact |
0 |
|
Short-circuit current rating (high fault at 480 V) |
30/100 kA, Fuse, SCCR (UL/CSA) 100 A, max. CB, SCCR (UL/CSA) 250/150 A, Class J, max. Fuse, SCCR (UL/CSA) 65 kA, CB, SCCR (UL/CSA) |
|
Conventional thermal current ith at 55°C (3-pole, open) |
83 A |
|
Rated operational power (NEMA) |
37 kW |
|
10.2.3.1 Verification of thermal stability of enclosures |
|
|
Ambient storage temperature – min |
40 °C |
|
Rated breaking capacity at 380/400 V |
650 A |
|
Short-circuit current rating (basic rating) |
250 A, max. CB, SCCR (UL/CSA) 10 kA, SCCR (UL/CSA) 250 A, max. Fuse, SCCR (UL/CSA) |
|
Rated control supply voltage (Us) at AC, 50 Hz – max |
|
|
Rated breaking capacity at 660/690 V |
370 A |
|
Rated operational current (Ie) at DC-1, 220 V |
|
|
Special purpose rating of elevator control |
32.2 A, 200 V 60 Hz 3-ph, (UL/CSA) 10 HP, 200 V 60 Hz 3-ph, (UL/CSA) 41 A, 600 V 60 Hz 3-ph, (UL/CSA) 30 HP, 480 V 60 Hz 3-ph, (UL/CSA) 40 A, 480 V 60 Hz 3-ph, (UL/CSA) 40 HP, 600 V 60 Hz 3-ph, (UL/CSA) 15 HP, 240 V 60 Hz 3-ph, (UL/CSA) 42 A, 240 V 60 Hz 3-ph, (UL/CSA) |
|
Ambient operating temperature – max |
60 °C |
|
Assigned motor power at 115/120 V, 60 Hz, 1-phase |
5 HP |
|
Rated operational power at AC-4, 440 V, 50 Hz |
14 kW |
|
Electrical connection type of main circuit |
Screw connection |
|
Number Of Poles |
Three-pole |
|
Ambient operating temperature – min |
-25 °C |
|
10.6 Incorporation of switching devices and components |
Does not apply, since the entire switchgear needs to be evaluated. |
|
10.2.6 Mechanical impact |
|
|
10.3 Degree of protection of assemblies |
|
|
Application |
Contactors for Motors |
|
Operating frequency |
5000 mechanical Operations/h (AC operated) |
|
Voltage type |
AC |
|
Short-circuit protection rating (type 1 coordination) at 400 V |
250 A gG/gL |
|
Product category |
Contactors |
|
Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V |
|
|
Rated operational power at AC-3, 690 V, 50 Hz |
35 kW |
|
Power consumption, pick-up, 50 Hz |
154 VA, Dual-frequency coil in a cold state and 1.0 x Us 168 VA, Dual-frequency coil in a cold state and 1.0 x Us |
|
Heat dissipation capacity Pdiss |
0 W |
|
Assigned motor power at 460/480 V, 60 Hz, 3-phase |
50 HP |
|
Special purpose rating of tungsten incandescent lamps |
88 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA) 88 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA) |
|
Switching time (AC operated, make contacts, opening delay) – min |
8 ms |
|
Rated operational current (Ie) at AC-4, 500 V |
|
|
Rated operational power at AC-3, 240 V, 50 Hz |
22 kW |
|
Terminal capacity (solid/stranded AWG) |
18 – 14, Control circuit cables Single 14 – 1, double 14 – 2, Main cables |
|
10.9.2 Power-frequency electric strength |
Is the panel builder’s responsibility. |
|
Degree of protection |
IP00 |
|
Overvoltage category |
III |
|
Switching time (AC operated, make contacts, opening delay) – max |
13 ms |
|
Ambient storage temperature – max |
80 °C |
|
Pollution degree |
3 |
|
Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V |
98 A |
|
Power consumption, pick-up, 60 Hz |
168 VA, Dual-frequency coil in a cold state and 1.0 x Us 154 VA, Dual-frequency coil in a cold state and 1.0 x Us |
|
Switching time (AC operated, make contacts, closing delay) – max |
18 ms |
|
Rated impulse withstand voltage (Uimp) |
8000 V AC |
|
Connection |
Screw terminals |
|
Tightening torque |
1.2 Nm, Screw terminals, Control circuit cables 3.3 Nm, Screw terminals, Main cables |
|
Rated operational power at AC-4, 660/690 V, 50 Hz |
17 kW |
|
Frame size |
FS3 |
|
Conventional thermal current ith (1-pole, enclosed) |
180 A |
|
Rated operational current (Ie) at AC-3, 660 V, 690 V |
37 A |
|
10.2.2 Corrosion resistance |
|
|
10.2.4 Resistance to ultra-violet (UV) radiation |
|
|
10.2.7 Inscriptions |
|
|
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V |
|
|
Switching time (AC operated, make contacts, closing delay) – min |
12 ms |
|
Short-circuit protection rating (type 2 coordination) at 400 V |
125 A gG/gL |
|
Special purpose rating of ballast electrical discharge lamps |
88 A (600V 60Hz 3phase, 347V 60Hz 1phase) 88 A (480V 60Hz 3phase, 277V 60Hz 1phase) |
|
Number of auxiliary contacts (normally open contacts) |
|
|
Special purpose rating of definite purpose rating |
390 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA) 65 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA) |
|
Rated operational power at AC-3, 500 V, 50 Hz |
47 kW |
|
Shock resistance |
10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms |
|
Rated operational current (Ie) at DC-1, 110 V |
|
|
Assigned motor power at 230/240 V, 60 Hz, 3-phase |
25 HP |
|
Drop-out voltage |
AC operated: 0.6 – 0.3 x UC, AC operated |
|
Power consumption, sealing, 60 Hz |
22 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz 4.1 W, Dual-frequency coil in a cold state and 1.0 x Us 14 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz |
|
Resistance per pole |
1.9 mΩ |
|
Ambient operating temperature (enclosed) – min |
25 °C |
|
Stripping length (control circuit cable) |
10 mm |
|
10.12 Electromagnetic compatibility |
|
|
10.2.5 Lifting |
|
|
Stripping length (main cable) |
14 mm |
|
Ambient operating temperature (enclosed) – max |
|
|
Special purpose rating of resistance air heating |
|
|
Rated control supply voltage (Us) at DC – min |
0 V |
|
Short-circuit current rating (high fault at 600 V) |
30 kA, CB, SCCR (UL/CSA) 250/150 A, Class J, max. Fuse, SCCR (UL/CSA) 30/100 kA, Fuse, SCCR (UL/CSA) 250 A, max. CB, SCCR (UL/CSA) |
|
10.8 Connections for external conductors |
|
|
Number of main contacts (normally open contact) |
|
|
Rated breaking capacity at 220/230 V |
|
|
Screw size |
M6, Terminal screw, Main cables M3.5, Terminal screw, Control circuit cables |
|
Rated operational current (Ie) at AC-4, 400 V |
|
|
Short-circuit protection rating (type 2 coordination) at 690 V |
80 A gG/gL |
|
Assigned motor power at 575/600 V, 60 Hz, 3-phase |
60 HP |
|
Protection |
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274) |
|
Power consumption, sealing, 50 Hz |
4.1 W, Dual-frequency coil in a cold state and 1.0 x Us |
|
Rated operational power at AC-3, 440 V, 50 Hz |
41 kW |
|
Terminal capacity (stranded) |
2 x (16 – 35) mm², Main cables 1 x (16 – 50) mm², Main cables |
|
Rated breaking capacity at 500 V |
|
|
Rated operational power at AC-3, 415 V, 50 Hz |
39 kW |
|
Climatic proofing |
Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
|
Emitted interference |
According to EN 60947-1 |
|
Connection to SmartWire-DT |
No |
|
Static heat dissipation, non-current-dependent Pvs |
4.1 W |
|
Rated control supply voltage (Us) at DC – max |
|
|
10.9.3 Impulse withstand voltage |
|
|
Utilization category |
AC-1: Non-inductive or slightly inductive loads, resistance furnaces AC-4: Normal AC induction motors: starting, plugging, reversing, inching AC-3: Normal AC induction motors: starting, switch off during running |
|
Rated operational current (Ie) at AC-3, 440 V |
|
|
10.5 Protection against electric shock |
|
|
Safe isolation |
440 V AC, Between the contacts, According to EN 61140 440 V AC, Between coil and contacts, According to EN 61140 |
|
10.13 Mechanical function |
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
|
10.9.4 Testing of enclosures made of insulating material |
|
|
Heat dissipation per pole, current-dependent Pvid |
5.7 W |
|
Actuating voltage |
24 V 50/60 Hz |
|
Rated operational current (Ie) at AC-4, 660 V, 690 V |
20 A |
|
Equipment heat dissipation, current-dependent Pvid |
17.1 W |
|
Assigned motor power at 200/208 V, 60 Hz, 3-phase |
20 HP |
|
Pick-up voltage |
0.8 – 1.1 V AC x Uc |
|
Suitable for |
Also motors with efficiency class IE3 |
|
Conventional thermal current ith at 40°C (3-pole, open) |
|
|
Terminal capacity (solid) |
2 x (0.75 – 2.5) mm², Control circuit cables 2 x (0.75 – 16) mm², Main cables 1 x (0.75 – 16) mm², Main cables 1 x (0.75 – 4) mm², Control circuit cables |
|
Number of auxiliary contacts (normally closed contacts) |
|
|
Interference immunity |
|
|
10.2.3.2 Verification of resistance of insulating materials to normal heat |
|
|
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects |
|
|
Lifespan, mechanical |
10,000,000 Operations (AC operated) 7,000,000 Operations (Coil 50/60 Hz) |
|
Short-circuit protection rating (type 1 coordination) at 690 V |
100 A gG/gL |
|
Rated making capacity up to 690 V (cos phi to IEC/EN 60947) |
910 A |
|
Rated operational power at AC-4, 240 V, 50 Hz |
7.5 kW |
|
Rated operational power at AC-4, 500 V, 50 Hz |
16 kW |
|
Rated operational current (Ie) at DC-1, 60 V |
|
|
Rated operational power at AC-4, 220/230 V, 50 Hz |
7 kW |
|
Rated operational voltage (Ue) at AC – max |
690 V |
|
Rated control supply voltage (Us) at AC, 60 Hz – min |
|
|
10.7 Internal electrical circuits and connections |
|
|
10.10 Temperature rise |
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
|
Switching capacity (main contacts, general use) |
88 A, Maximum motor rating (UL/CSA) |
|
Conventional thermal current ith at 50°C (3-pole, open) |
88 A |
|
Rated operational current (Ie) at AC-3, 500 V |
|
|
Assigned motor power at 230/240 V, 60 Hz, 1-phase |
15 HP |
|
Screwdriver size |
0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver 2, Terminal screw, Pozidriv screwdriver |
|
Duty factor |
100 % |
|
Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V |
|
|
Conventional thermal current ith of main contacts (1-pole, open) |
200 A |
|
Rated control supply voltage (Us) at AC, 60 Hz – max |
|
|
Arcing time |
10 ms |
|
Rated operational power at AC-4, 415 V, 50 Hz |
13 kW |
|
Rated insulation voltage (Ui) |
|
|
Altitude |
Max. 2000 m |
| Catalogs |
Product Range Catalog Switching and protecting motors |
|
|
Switching and protecting motors – catalog |
|
|
SmartWire-DT Catalog |
|
|
Product overview for machinery |
|
| Certification reports |
DA-DC-00004070.pdf |
|
|
DA-DC-00004229.pdf |
|
|
0000SPC-571 |
|
| Characteristic curve |
210U038 |
|
|
2100DIA-7 |
|
|
eaton-contactors-switch-dilm-characteristic-curve.eps |
|
|
eaton-contactors-component-dilm-characteristic-curve-003.eps |
|
|
eaton-contactors-switch-dilm-characteristic-curve-002.eps |
|
|
2100DIA-8 |
|
| Drawings |
210X214 |
|
|
eaton-contactors-dilm-dimensions-012.eps |
|
|
eaton-contactors-mounting-dilm-dimensions.eps |
|
|
210N017 |
|
|
eaton-contactors-dilm-dimensions-002.eps |
|
|
210T015 |
|
|
210N018 |
|
|
eaton-contactors-mounting-dilm-dimensions-002.eps |
|
|
eaton-general-ie-ready-dilm-contactor-standards.eps |
|
|
210I194 |
|
|
2100DRW-96 |
|
|
eaton-contactors-dilm-3d-drawing-011.eps |
|
|
eaton-contactors-mounting-dilm-3d-drawing.eps |
|
| eCAD model |
DA-CE-ETN.DILM65(24V50_60HZ) |
|
| Installation instructions |
IL03407033Z |
|
| mCAD model |
DA-CS-dil_m40_72 |
|
|
DA-CD-dil_m40_72 |
|
| PEP Eco-passport |
EATO-00027-V01.01-EN |
|
| Specifications and datasheets |
Eaton Specification Sheet – 277898 |
|
| System overview |
210O154 |
|
|
eaton-contactors-dilm-contactor-system-overview.eps |
|
| Wiring diagrams |
eaton-contactors-contact-dilm-wiring-diagram-003.eps |
|
|
210S045 |
|
| Date |
Thu Jul 20 2023 |
|
