CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear

Category:

Description

Summary

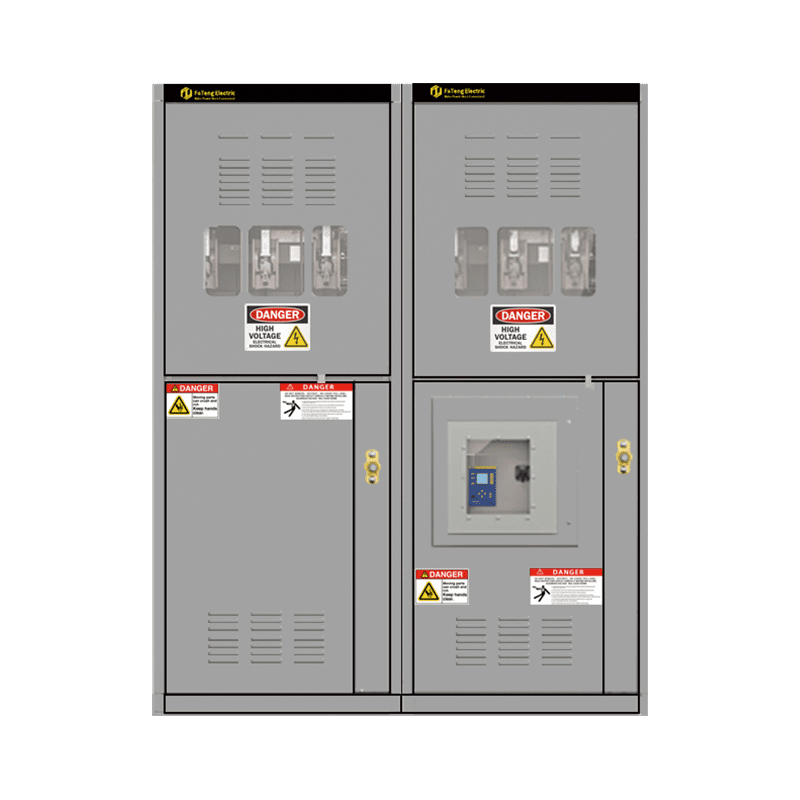

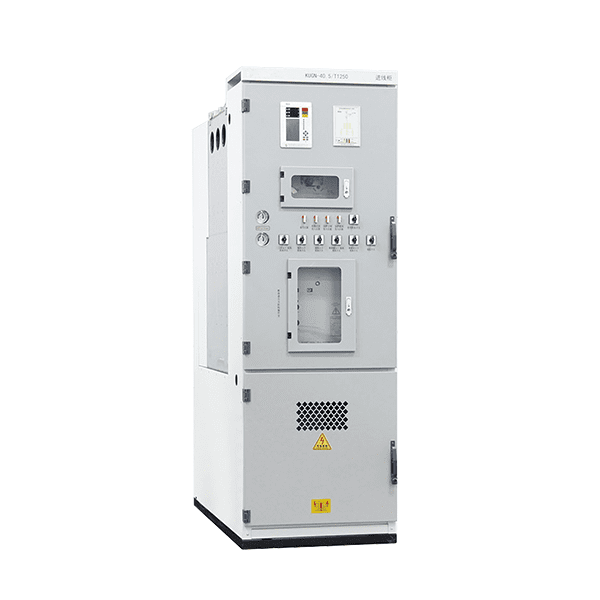

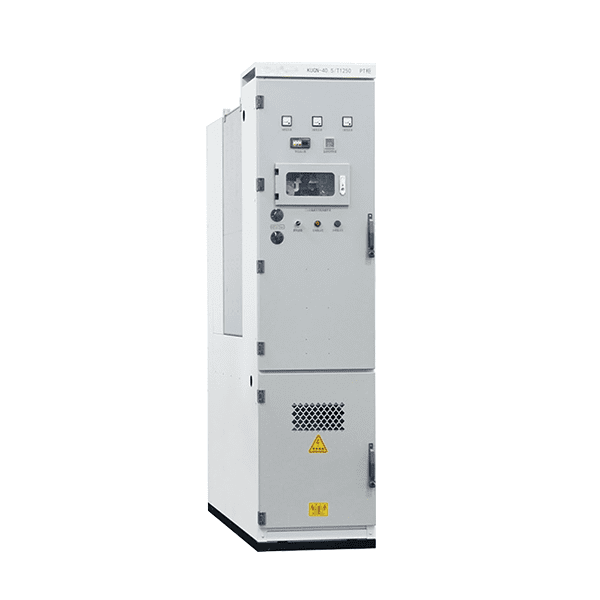

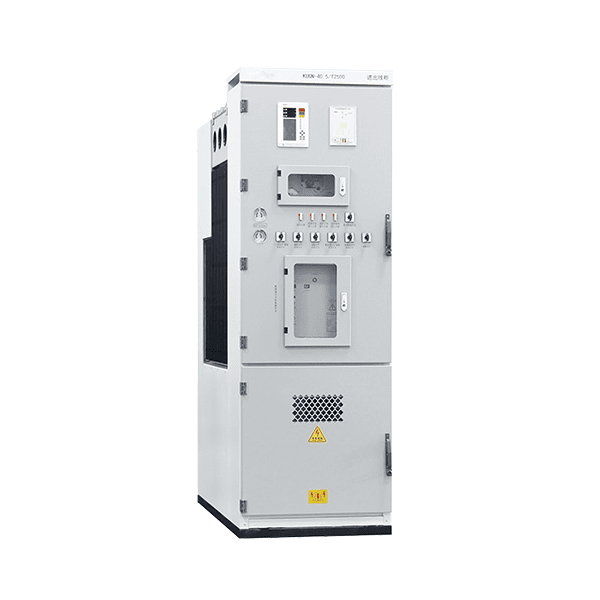

KUGN-40.5 series gas insulated metal enclosed switchgear (C-GIS) is a new generation of gas insulated switchgear C-GIS products developed by our company.

Metal armored gas seal, internal use of low pressure SF6 gas as insulation medium, high-voltage parts waterproof, dustproof,not affected by the environment, not affected by altitude, completely free of maintenance, using permanent magnet or spring operating mechanism, solid sealing pole vacuum interrupter, greatly reducing parts and components.

Reliable operation in basement, plateau,frozen soil, coastal and other high altitude, humid, salt fog harsh environment, to meet the new energy, plateau, subway, high-speed rail and land shortage of urban power distribution projects, with high reliability maintenance free,strong adaptability, less land occupation characteristics.

With intelligent control and protection unit, it has powerful control, protection, measurement and communication functions and fully realizes the requirements of distribution network automation.

The product is a complete set of indoor three-phase Ac single bus, double bus and bus section. it is mainly used in power plants small and medium-sized power stations, substations, high-rise buildings, industrial and mining enterprises, subway and electrified railway, etc, to control, receive, distribute, protect and monitor the power supply system and electric energy.

Execution standard

GB1984-2014  AC high voltage circuit breaker

GB3906-2006  3.6kv-40.5kv AC metal enclosed switchgear and control equipment

GB/T11022-2011 Common technical requirements for high voltage switchgear and control equipment standards

GB1985-2014  High voltage AC disconnectors and earthing switches

GB/T11023-1989  Test method for SF6 gas seal of high voltage switchgear

GB4208-2008  Enclosure protection level (IP code)

DL/T402-2007  Technical conditions for ordering high voltage AC circuit breakers

DL/T486-2010  Technical conditions for ordering high voltage AC disconnectors and earthing switches

DL/T403-2000  Technical conditions for ordering 12kV~ 40.5kV high voltage vacuum circuit breaker

DL/T404-2007  3.6kv-40.5kvAC metal enclosed switchgear and control equipment

DL/T593-2006  Common technical requirements for high voltage switchgear and control equipment standards

DL/T791-2001  Guide for selection of indoor AC inflatable switchgear

Service environmental conditions

Altitude: < 5000m (when the altitude of the equipment is higher than 1000m, it needs to be specified specially);

Ambient temperature: maximum temperature + 50 ‘c , minimum temperature – 25 °c. The average value within 24 hours is less than 35 °C;

Environmental humidity: 24h average relative humidity < 95%;monthly average relative humidity < 90%;

Installation environment: there is no explosive and corrosive gas in the surrounding air, and there is no frequent severe vibration or impact in the installation site;

Please contact the technical department of our company if it exceeds the normal use conditions specified in GB3906 or iec62271-200 and the manual.

Product technical features

Compact structure

Kugn-40.5 indoor inflatable switchgear has more compact structure, which can greatly save limited urban land

Maintenance free

The primary components are all sealed in the sealed gas box welded with stainless steel plate, filed with 0.04MPa SF6 gas as the insulation medium, with the protection grade of lP67, which can completely avoid the influence of external environment and climate on the switch cabinet, and reliably operate in the basement, plateau, frozen soil, coastal, humid and other harsh environment,realizing maintenance free.

Safety and reliability

The switch cabinet has reliable five prevention mechanical interlocking, which can prevent misoperation. All high voltage components, including, cable terminals, arresters, current transformers and voltage transformers, are sealed with grounded metal enclosure,safe and touchable.

Simple installation and operation

The product is designed according to the modular structure, the scheme combination is flexible, and the operation is simple and convenient, The side connection between cabinets is made by side parallel bus connector, which is convenient for installation.The voltage transformer and lightning arrester are installed outside the gas box to facilitate installation and replacement.

Product technical parameters

NO. Project Unit Parameter
1 Rated voltage kV 40.5
2 Rated frequency Hz 50
3 Rated current A 630/1250/2000/2500
4 Rated insulation level Power frequency withstand voltage(phase to phase ,to ground,vacuum fracture) kV 95
Power frequency withstand voltage (isolated fracture) 118
Powerfrequencywithstandvoltage (control and auxiliary circuit) 2
Lightningimpulse withstand voltage (phase to phase, to ground, vacuum fracture) 185
Lightningimpulse withstand voltage (isolated fracture) 215
5 Rated short timewithstand current/duration Main circuit kA/s 31.5/4
Earthing switch 31.5/4
Grounding circuit 27.4/4
6 Rated peak withstand current Main circuit kA 80
Earthing switch 80
Grounding circuit 69.6
7 Rated short circuit breaking current kA 31.5
8 Short circuit breaking times times 30
9 Rated short circuit making current kA 80
10 Rated breaking current of single capacitor bank A 630
11 Rated back to back capacitor bank breaking current A 400
12 Rated cable charging breaking current A 50
13 Rated operation sequence O-0.3s-CO-3min-CO
14 Mechanical life Circuit breaker times 10000
Three position switch (disconnector/earthing switch) 3000
15 Rated pressure ofSF6 gas (relative value of20°C) Rated inflation pressure MPa 0.04
Minimum functional level pressure 0.02
16 Protection level Sealed box IP67
Switchgear enclosure IP4X
17 Annual relative leakage rate of SF6 gas % ≤0.01
18 Rated supply voltage of auxiliary circuit V AC380,AC220
19 Rated supply voltage of control circuit V DC110,DC220,AC220
20 External dimension ofcabinet Wide mm 600/800
Deep 1660
High 2400

Product structure

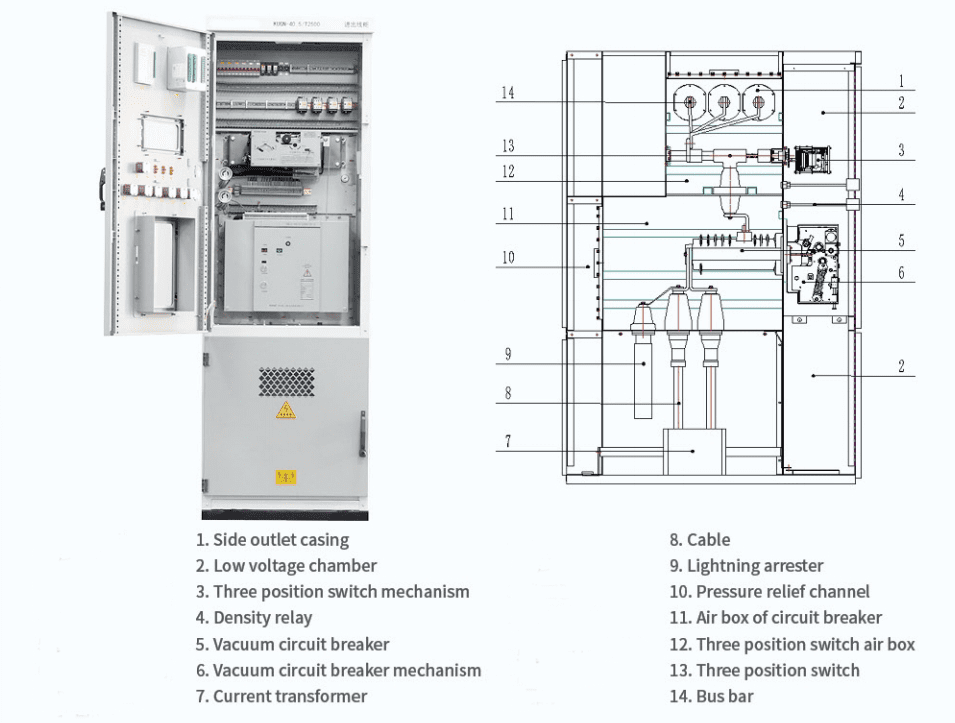

The vacuum circuit breaker is located in an inflatable compartment, and the bus and three position switch are in another inflatable compartment, The inflatable compartment is made of non-magnetic stainless steel plate by laser cutting and welding and the non welded sealing connection surface is sealed by O-ring.

The inner cone cable connecting sleeve is installed in the air filed compartment of the circuit breaker, which can be connected with multiple cables in parallel, voltage transformer or lightning arrester, etc, the annular core current transformer is set on the cable and fixed with the switchgear frame.

The product is three-phase common box type and modular design. it is composed of circuit breaker air chamber, three position switch and bus inflation compartment, low-voltage room (instrument room, operating mechanism room), cable compartment.etc.

The pressure relief device is set at the upper part of the three position switch and bus inflation compartment and the rear of the circuit breaker inflation compartment, When the internal pressure of the inflation compartment exceeds a certain limit value.the pressure relief device will automatically open to release gas, so as to ensure the safety of operators and products.

The bus connection between cabinets is realized by using side expansion bus connector connection.

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图3

Introduction of main parts and accessories

Three position mechanism switch

Manual and motor driven direct acting three position switch,horizontal layout, with: work, isolation and grounding functions

The three position switch has mechanical and electrical interlock to prevent all kinds of misoperation

Cylindrical electrode electric field, uniform electric field, superior insulation performance

It has the function of mechanical position indication

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图4CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图5

Circuit breaker mechanism switch

The vacuum circuit breaker is horizontally arranged in the gas box, and the vacuum arc extinguishing technology is adopted. The interruption does not affect the SF6 insulation strength

The spring operating mechanism is located outside the air box and has automatic reclosing function, which can be disassembled as a whole and is convenient for maintenance

Making fixed pole of vacuum circuit breaker by APG Technology

Cooperate with three position switch to realize anti short circuit grounding function

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图6

lntroduction of main accessories

Side parallel bus connection system

The bus connector is used together with the bus coupler socket for the electrical connection between the gas box and the air box;

The use of special bus connector effectively solves the insulation problem of connection between cabinets. There is no need to inflate the gas box on site. The cabinet is flexible and easy to install.

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图7

Cable termination

It can be used with 2 # and 3 # cable sockets. lt is metal armored and grounded. it is safe to touch

The sectional area of the cable that can be connected is related to the rated voltage of the cable,and up to 4 cables can be connected to each phase.

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图8

Cone plug arrester

Technical features:

It is connected with 2 # inner cone type plug-in head, installed outside the gas box, equipped with silicone rubber insulated plug-in terminal; all metal shell shielding, safe and touchable.easy to install and maintenance free

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图9

Technical parameters:

Model System nominal
voltage
(kv)
Rated voltage of arrester(kv) Continuous operation voltage (kv) DC 1mA
reference voltage (kv)
2ms square wave flow capacity (A) Residual voltage  under lightning impulse
current (kV)
Residual voltage under switching impulse current (kV) High current impulse withstand
(kA)
CM-35 35 51 40.8 ≥73 400 ≤134 ≤114 100

Shielded front plug

Technical features:

Fully insulated, fully shielded, not affected by harsh environment, pollution proof,maintenance free.

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图10

Technical parameters:

Rated current 26/3540.5kV
Rated current 630A
Power frequency withstand voltage(5mins) 95kV
Partial discharge ≤10pc45kV
Thermal stable current 23kA/2s
Dynamic stability current (10ms) 83kA

Back plug arrester

Technical features:

Special structure, integral molding, no air gap, good sealing performance, moisture-proof and explosion-proof, long creepage distance, good water increasing ability and strong pollution resistance.

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图11

Model AHY5WZ3-51/34
System nominal voltage 35kVr.m.s
Rated voltage 51kV
Continuous operating voltage 40.8kV
Residual voltage under 5kA lightning impulse current 134kV
Voltage UlmA under DC lmA ≥73kV
0.75ulma DC leakage current ≤50μA
2ms square wave shock capacity 800A
High current impulse capacity 65kV

Voltage transformer

Technical features:

Epoxy casting dry voltage transformer, plug-in design, all metal shell shielding grounding, safe and touchable. it is connected with the primary system through 2inner cone socket, and the product has its own fuse.

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图12CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图13

Intelligent microcomputer measurement and control protection device

The intelligent microcomputer monitoring and protection device integrates the functions of protection, control, measurement, monitoring, communication and alarm, which can realize the comprehensive automation requirements and realize unattended.

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图14

Operating procedures

Power transmission operation

Operate the circuit breaker to open → operate the three position switch from the grounding position to the isolation position→ operate the three position switch from the isolated position to the closing position→ operate the circuit breaker to close

Blackout operation

Operate the circuit breaker to open→operate the three position switch from the closing position to the isolation position→operate the three position switch from the isolation position to the grounding position→detect that the circuit at the cable side is in the state of power loss switch on the circuit breaker



Interlock function

  1. Prevent the circuit breaker from closing again;
  2. Only when the three position switch is in any working position of closing, isolating or grounding, can the circuit breaker be closed or opened;
  3. When the handle of the three position switch is not taken out, or the switch is not in place in the process of connection, isolation or grounding of the three position switch, the circuit breaker cannot be closed;
  4.  When the grounding knife is in the grounding position and the high-voltage cable room is charged, the manual and electriclocking circuit breaker is closed to prevent the incoming line from being charged to lock the grounding switch:
  5. When the circuit breaker has no operating power supply, both manual and electric locking circuit breaker are closednamely, the circuit breaker is closed under voltage loss; ifthe secondary control circuit has no working power supply and the circuit breaker needs to be closed and opened on site, the circuit breaker panel shall be disassembled first, and the locking electromagnet connecting rod shall be manually pulled up to realize the closing and opening of the circuit breaker manually.
  6. If there is no special instruction for ordering, the circuit breaker has been equipped with electrical anti tripping function.

Outline dimensions and foundation reference drawings

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图15

Typical primary circuit scheme

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图16

CGIS-40.5/T630-2500-31.5 Gas insulated metal enclosed switchgear插图17
