Description
250A Side Output Plug-in Main Circuit Primary Connector is suitable for use with a minimum module suction fan with H=150mm to achieve the economical side exit of 150mm high drawers, offering a replacement for the GCS side exit scheme.
Product Information

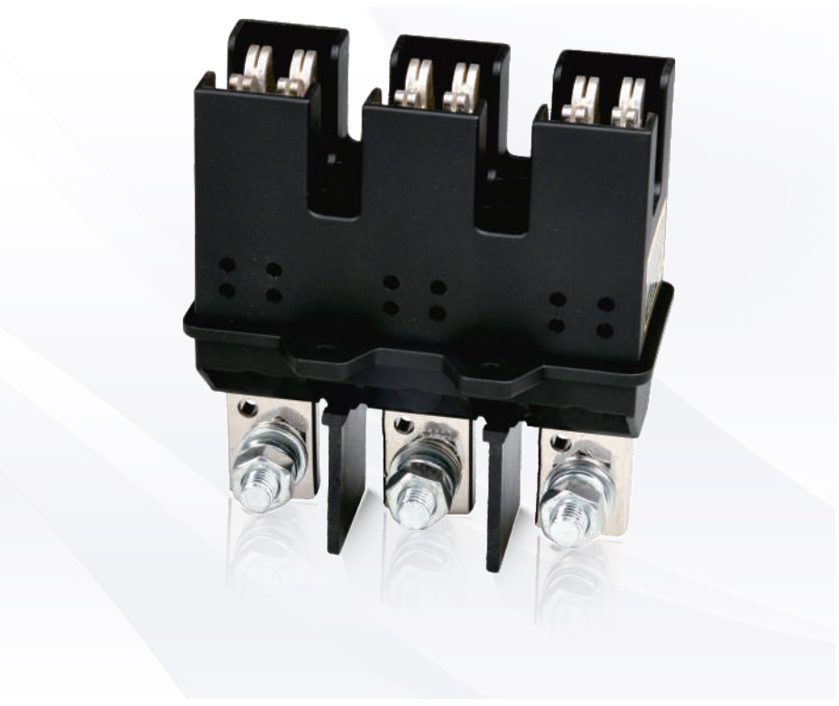

- Product Model: DCT2-B-3-250A
- Product Name: 250A Side Output Plug-In
- Product Type: Main Circuit Primary Connector
- Rated Current: 250A
Product Advantages
The 250A Side Output Plug-In is a specialized connector designed for cost-effective side outlet solutions. It offers a single-circuit outlet and can be utilized in various configurations:

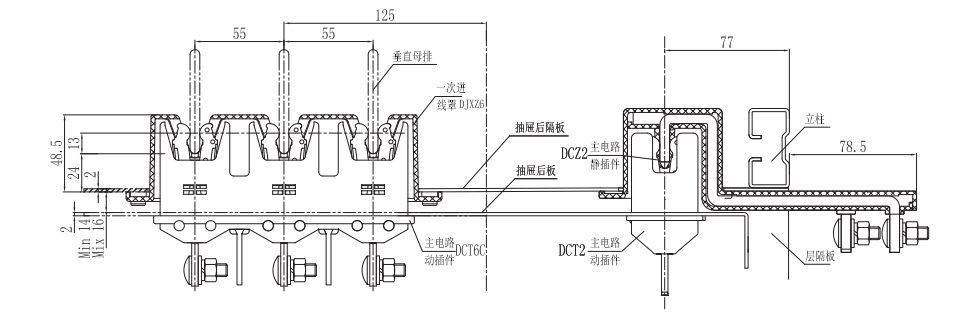

Drawer Compatibility: Compatible with the DCT6C series connector, enabling the creation of economical side outlet drawers with a 55mm spacing.
Function Board Scheme: It integrates seamlessly with the DCT9 series connectors, facilitating the side outlet scheme for half-function boards.
Key Features
- Double Collet Design: Incorporates a double collet design, with key components shielded by imported stainless steel to minimize temperature rise caused by eddy currents.
- Enhanced Heat Dissipation: Strategically positioned convex points between the inserts maximize surface area, improving both heat dissipation and conductivity.
- Effective Heat Reduction: The plug housing includes open-air holes aligned with the contact point between the insert and the copper bar, ensuring efficient heat dissipation and reduced temperature rise.
Current Specifications
The plug-in is available in various current specifications, including 125A, 250A, 400A, and 630A.
