These advantages make the DJT5-630A/3 an efficient and reliable solution for your primary static plugin needs.
Description
Product Information:

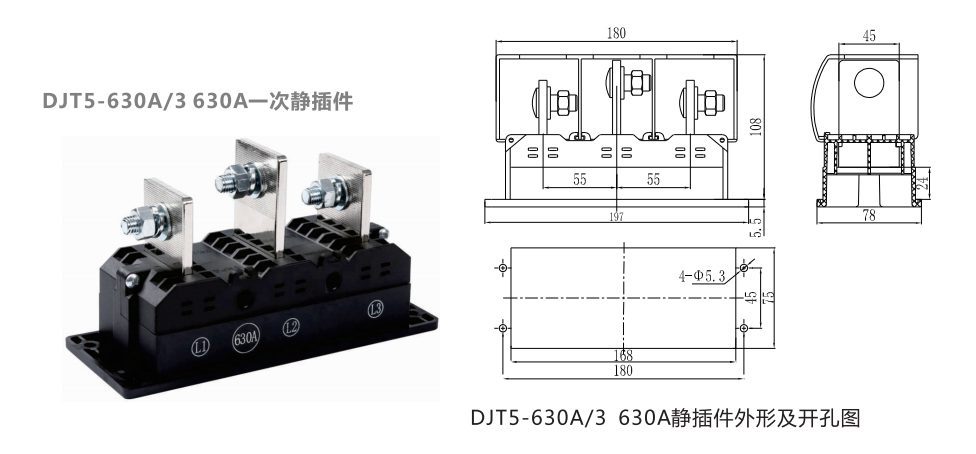

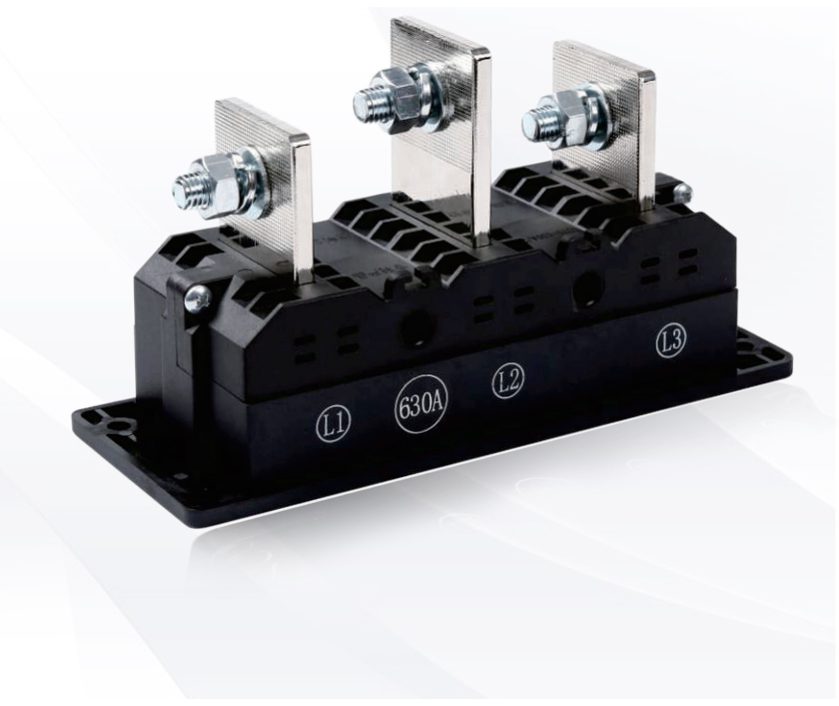

- Product Model: DJT5-630A/3
- Product Name: 630A Primary Static Plugin
- Product Type: Main Circuit Primary Connector
- Rated Current: 630A
Product Advantages:
This primary static plugin, model DJT5-630A/3, offers several advantages:
- Crocodile Style Design: The plugin structure follows the crocodile style design principle, providing a strong clamping force and a larger contact area between the plugin and the copper bar. This results in improved conductivity.
- High-Quality Material: The plugin’s shrapnel is constructed from imported 304 high-hardness stainless steel. It offers high hardness and pressure uniformity, and it does not induce magnetic insulation, reducing temperature rise caused by eddy currents.
- Guiding Device: A guiding device is integrated between the dynamic and static plugin units. This design allows for reverse pilot insertion, reducing plugin misalignment caused by errors in sheet metal manufacturing.
- Heat Dissipation: Both the plugin housing and socket housing, corresponding to the contact position between the insert and the copper bar, feature ventilation and heat dissipation holes. This facilitates effective heat dissipation and reduces temperature rise.
If you need a quote or more information about this product, please send us a message and we will get back to you within 1 working day.
