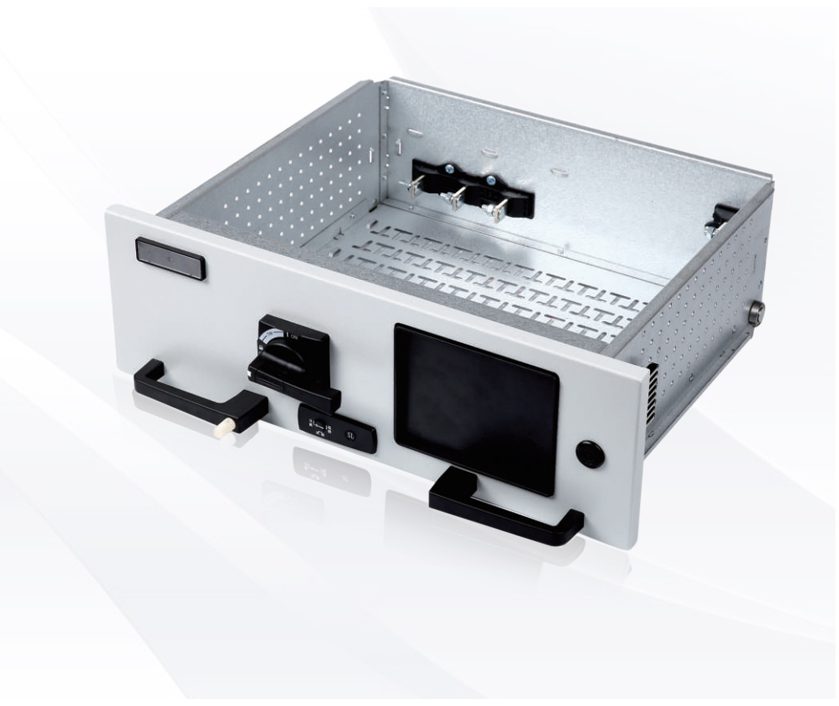

Hand Pull Side Outlet Unit Drawer New Universal Accessories For Low Voltage Switchgear Switchboard DLC2

The Hand Pull Side Outlet Unit Drawer offers a flexible and reliable solution for your low voltage switchgear switchboard DLC2.


Product Information:

  • Product Name: Hand Pull Side Outlet Unit Drawer
  • Product Type: Unit Drawer
  • Drawer Current: 125A, 250A, 400A, 630A
  • Drawer Height Options: H=150, 200, 300, 400, 600
  • Handle Height Options: 67, 82, 119

Introduction to Function and Operation:

The Hand Pull Side Outlet Unit Drawer is an adaptable accessory tailored for the DLC2 low voltage switchgear switchboard, featuring an array of beneficial functionalities:

Flexible Operation: Engineered for side outlet applications, this drawer is easily operable via hand pulling or shaking. It comes in diverse drawer height options, including H=150, 200, 300, 400, and 600.

Built-in Functions: Equipped with essential functionalities such as a three-position display, locking mechanisms, and interlocking features. Users can select from three handle height options: 67, 82, and 119.

Rear Outlet Structure: Incorporating a rear outlet structure, this drawer offers varied drawer currents, including 125A, 250A, 400A, and 630A.

Convenient Stroke: The stroke from the test position to the connection position measures 24mm. The test position is intended for primary disconnection and secondary connection, while the connection location facilitates secondary connection.

Transfer Switches: This mechanism provides one set of one open and one close transfer switch in both the test and connection positions, a notable enhancement from conventional methods.

Position Indication: A rotating arrow effectively indicates the corresponding position area on the drawer, streamlining operation.

User-Friendly Locking: Easily push the drawer to the connection position by pressing and holding the unlock button on the left pull handle. The mechanism’s lock rod secures the positioning block on the drawer’s bottom plate partition board when the handle is closed, locking the drawer securely. Additionally, the unlock button is safeguarded to prevent accidental movement. To unlock the drawer, open the handle and press the unlock button for hassle-free removal.

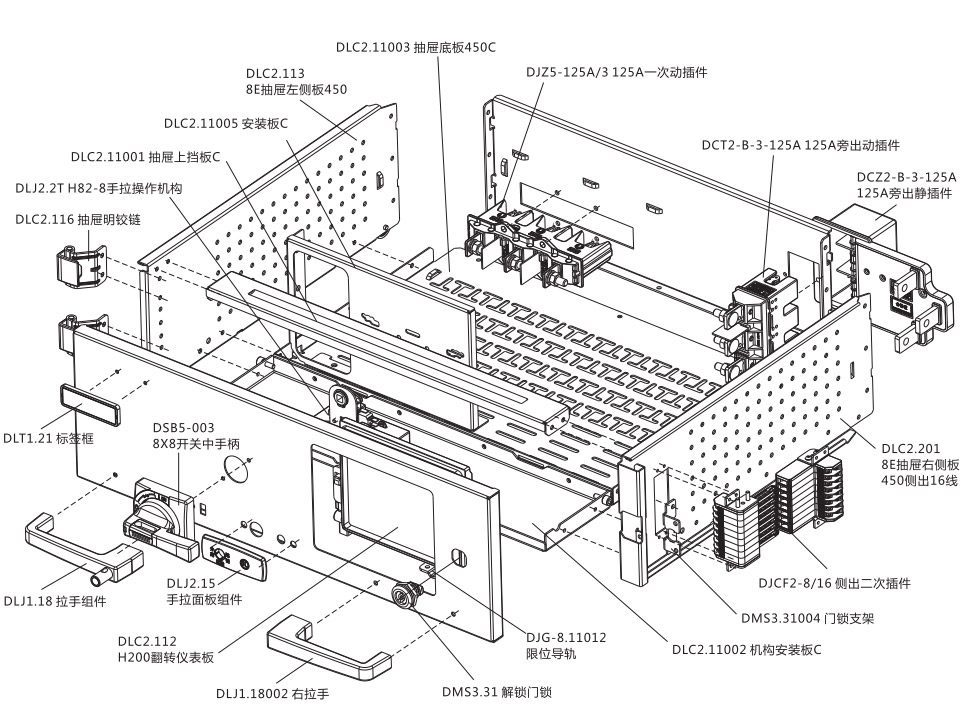

Drawer structure diagram

Hand Pull Side Outlet Unit Drawer New Universal Accessories For Low Voltage Switchgear Switchboard DLC2插图2
