Breaker for pneumatic cabinet 12kV 1250A (ABB)

The Pneumatic Cabinet Circuit Breaker is a high-performance solution designed to meet the demanding requirements of various electrical systems. With a rated voltage of 12KV and a rated current of 1250A, this circuit breaker ensures reliable and efficient operation even in extreme environmental conditions.

Description

The Pneumatic Cabinet Circuit Breaker is a high-performance solution designed to meet the demanding requirements of various electrical systems. With a rated voltage of 12KV and a rated current of 1250A, this circuit breaker ensures reliable and efficient operation even in extreme environmental conditions.

Key Features:

Wide Temperature Range: The circuit breaker is built to withstand temperature fluctuations from -40°C to +140°C, making it suitable for diverse operating environments.

Customizable Arc Extinguishing Chamber: Upon request, the arc extinguishing chamber manufacturer can be specified to align with specific customer preferences.

This breaker model comes equipped with a three-position isolation switch, providing enhanced versatility and ease of operation.

Technical Specifications:

Rated Voltage: 12KV
Rated Current: 1250A
Rated Short-Time Withstand Current: 20KA
Rated Short-Time Duration: 3s
Rated Open Distance: 9+1
Overtravel: 2-3mm
Rated Main Circuit Resistance: <30uΩ
The Pneumatic Cabinet Circuit Breaker delivers exceptional performance, offering reliable protection and efficient handling of electrical loads. Its robust construction and high-quality materials ensure long-lasting durability, while the customizable options make it adaptable to various power system setups.

Model: 12kV 1250A WL V 12/1250/25/3 X(ABB) WL G 12/1250/25/3 X

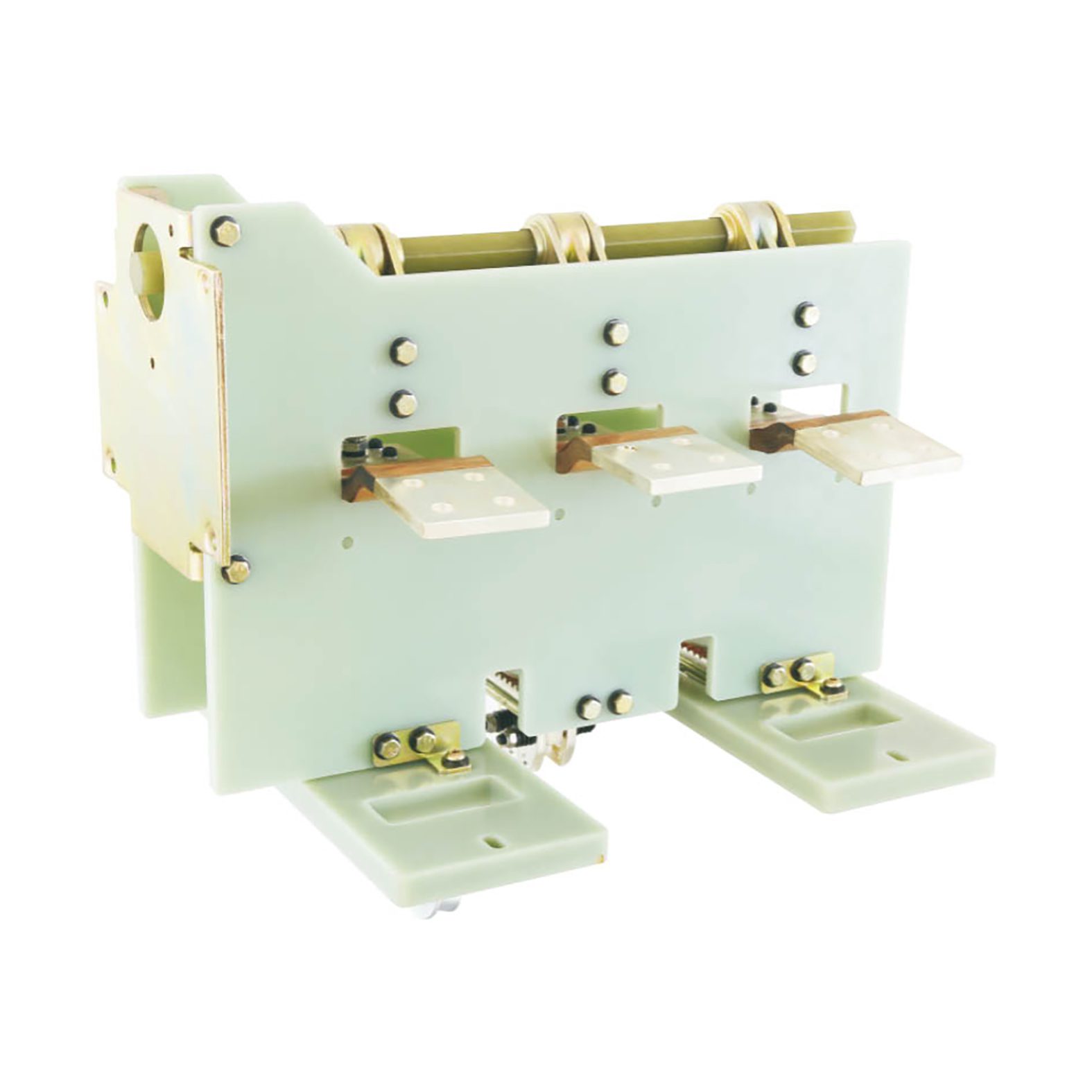

WL V 12/1250/25/3 X(ABB)

Breaker for pneumatic cabinet 12kV 1250A (ABB)插图1

Breaker for pneumatic cabinet 12kV 1250A (ABB)插图2



WL G 12/1250/25/3 X

Breaker for pneumatic cabinet 12kV 1250A (ABB)插图3        Breaker for pneumatic cabinet 12kV 1250A (ABB)插图4
