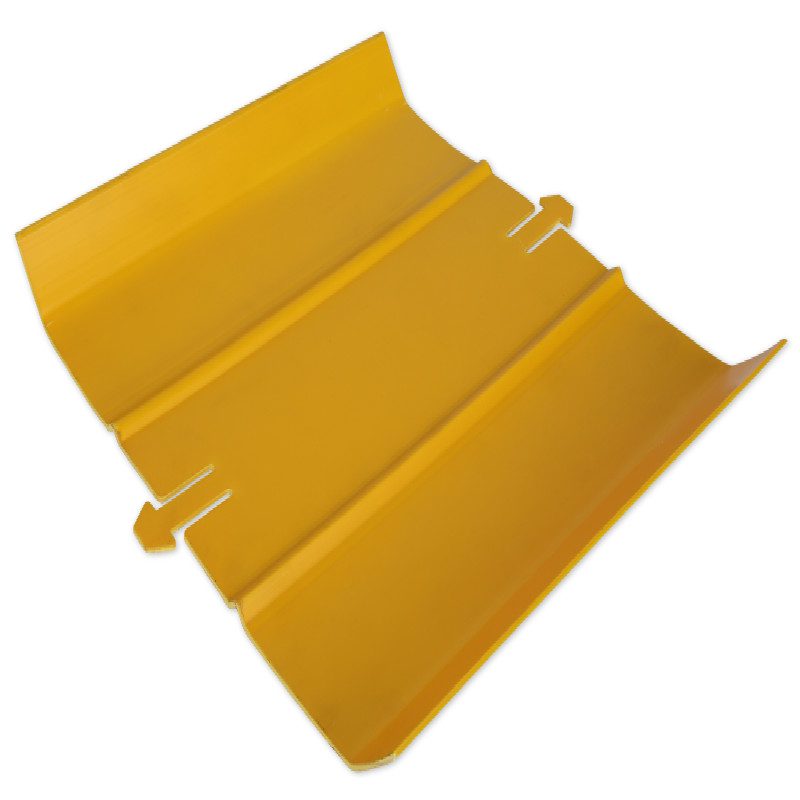

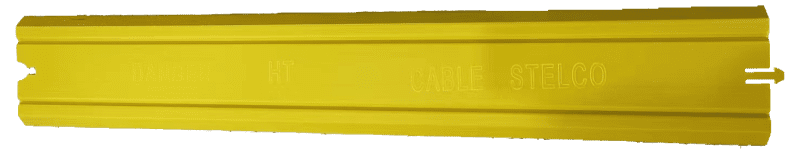

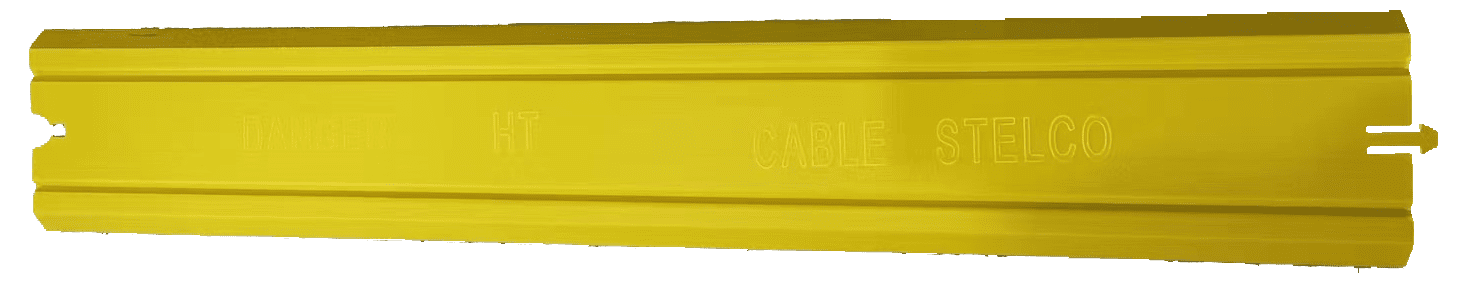

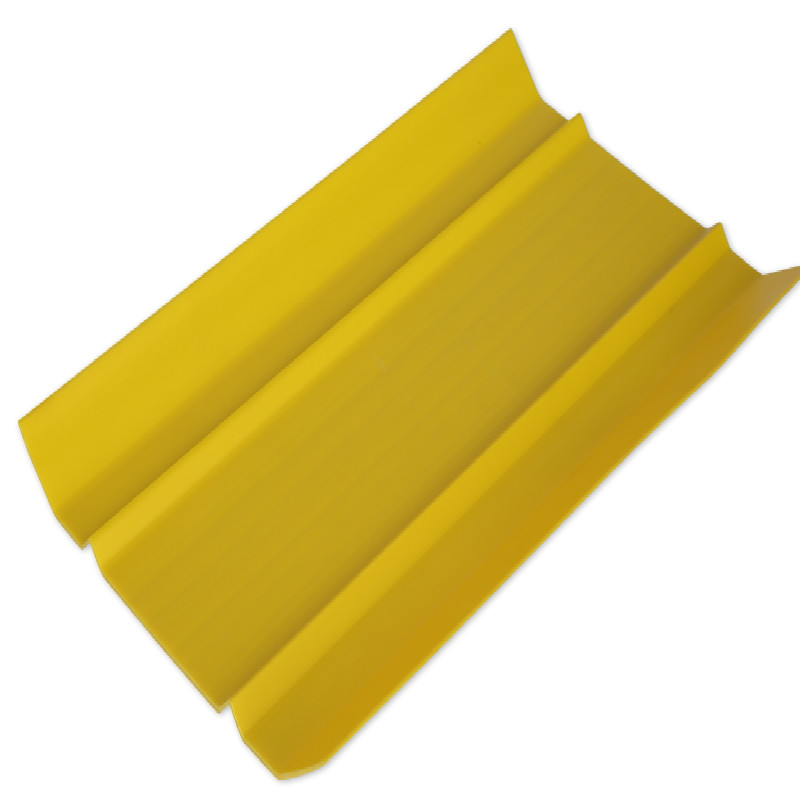

Devices Cable Protection Plate | PVC plate

This product is used to cover the top of the cable when laying cables in the ground to provide protection for the cable.

Category:

Description

This Devices Cable Protection Plate is used to cover the top of the cable when laying cables in the ground to provide protection for the cable.

  • Material of the plate: PVC
  • Density: 1.4 g/cm3 ± 10%
  • Designed for continuous operation up to 50℃
  • Tensile strength: >20 N/mm²
  • Increased mechanical strength.
  • Pulling resistance: > 10 N/mm²
  • Elongation at break: > 30%
  • Elasticity module
  • Chemical resistance against salts & minerals acid: pass
  • Self extinguish within 60 sec max: pass
  • Thermal conductivity coefficient: > 0.3 W/(K m)
  • Place of Origin: Zhejiang, China
  • Color: Yellow+Black
  • Certification: ROHS
  • Sample: Provide
  • Length: 1m/1.2m
  • Function: Warning devices
  • Packing: Carton
  • MOQ: 1000sets
  • Service: OEM ODM
  • HS Code: 3916909090

Devices Cable Protection Plate | Plastic extrusion cable slab for warning | PVC plate

We have various sizes, customized text, customized punching, bright colors, and ROSH certified quality. Welcome inquiry
