| General specifications |
Product Name |

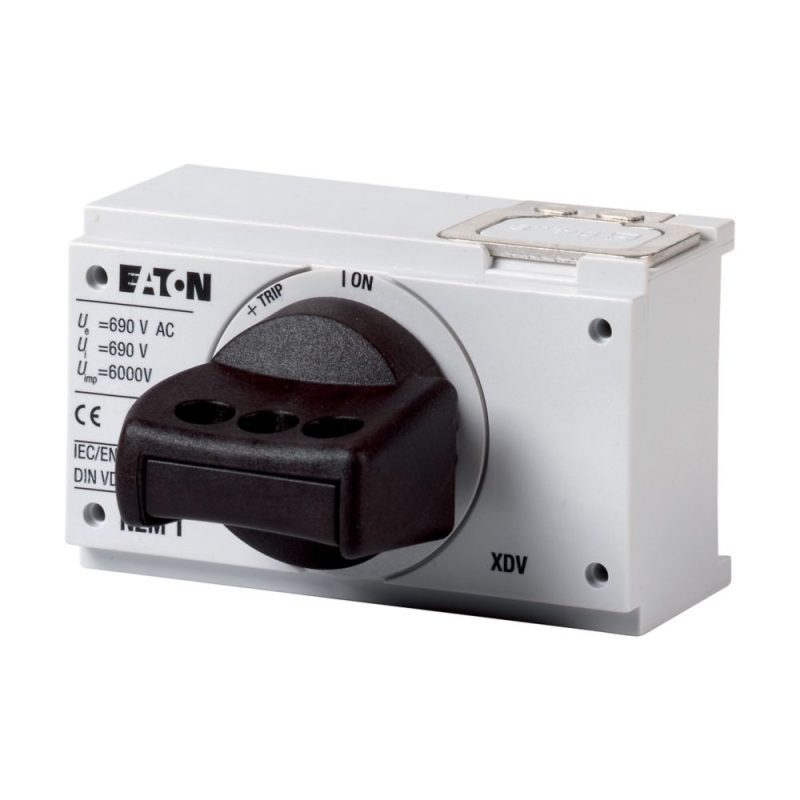

Eaton Moeller series NZM operating element |
|
Catalog Number |
260127 |
|
Model Code |
NZM2-XDV |
|
EAN |
4015082601270 |
|
Product Length/Depth |
85 mm |
|
Product Height |
100 mm |
|
Product Width |
105 mm |
|
Product Weight |
0.38 kg |
|
Compliances |
UL/CSA IEC RoHS conform |
|
Certifications |
CE marking IEC60947 CSA (File No. 22086) UL listed CSA certified CSA (Class No. 1437-01) UL489 UL (File No. E140305) UL (Category Control Number DIHS) CSA-C22.2 No. 5-09 |
| Product specifications |
10.11 Short-circuit rating |
Is the panel builder’s responsibility. The specifications for the switchgear must be observed. |
|
Frame |
NZM2 |
|
10.4 Clearances and creepage distances |
Meets the product standard’s requirements. |
|
Suitable for |
Power circuit breaker Switch disconnector |
|
10.12 Electromagnetic compatibility |
|
|
10.2.5 Lifting |
Does not apply, since the entire switchgear needs to be evaluated. |
|
Locking facility |
Lockable on the 0 position on the switch using up to 3 padlocks |
|
10.2.3.1 Verification of thermal stability of enclosures |
|
|
Fitted with: |
Padlock |
|
10.2.3.2 Verification of resistance of insulating materials to normal heat |
|
|
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects |
|
|
10.8 Connections for external conductors |
Is the panel builder’s responsibility. |
|
10.9.2 Power-frequency electric strength |
|
|
Special features |
Complete with rotary driveCan be combined with insulating surroundMODAN handle position detection by wire release can be retrofittedMakes it possible to operate the switch with a rotational movement and provides locking facilities |
|
10.7 Internal electrical circuits and connections |
|
|
Color |
Black |
|
Degree of protection / NEMA enclosure type |
IP20 4X. 12 |
|
Features |
Standard: black / gray Lockable |
|
10.10 Temperature rise |
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
|
10.9.3 Impulse withstand voltage |
|
|
Type |
AccessoryRotary handle on circuit-breaker |
|
10.2.2 Corrosion resistance |
|
|
10.6 Incorporation of switching devices and components |
|
|
10.2.4 Resistance to ultra-violet (UV) radiation |
|
|
10.2.7 Inscriptions |
|
|
10.5 Protection against electric shock |
|
|
Used with |
NZM2(-4), PN2(-4), N(S)2(-4) |
|
10.13 Mechanical function |
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
|
10.2.6 Mechanical impact |
|
|
10.9.4 Testing of enclosures made of insulating material |
|
|
10.3 Degree of protection of assemblies |
|
|
Activation type |
Rotary handle |
| Brochures |
eaton-digital-nzm-brochure-br013003en-en-us.pdf |
|
|
eaton-feerum-the-whole-grain-solution-success-story-en-us.pdf |
|
| Catalogs |
eaton-digital-nzm-catalog-ca013003en-en-us.pdf |
|
| Certification reports |
DA-DC-03_NZM2 |
|
| Drawings |
123X323 |
|
|
eaton-circuit-breaker-nzm-rotary-handle-dimensions-006.eps |
|
|
eaton-circuit-breaker-padlock-nzm-rotary-handle-dimensions.eps |
|
|
123X196 |
|
|
eaton-circuit-breaker-door-nzm-rotary-handle-3d-drawing-003.eps |
|
|
123I253 |
|
| Installation instructions |
IL01203003Z |
|
| mCAD model |
DA-CD-nzm2_xd |
|
|
DA-CS-nzm2_xd |
|
| Specifications and datasheets |
Eaton Specification Sheet – 260127 |
|
| Technical data sheets |
eaton-nzm-technical-information-sheet |
|
| Date |
Thu Jul 20 2023 |
|
