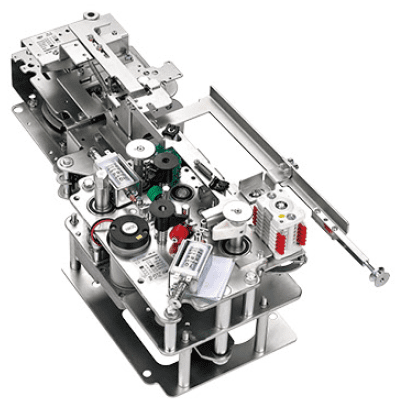

WLV/C/G 12/630/3 Spring-Operated Mechanism for High-Voltage SF6 Load Switching Equipment

Description

The WLV spring-operated mechanism is a reliable and adaptable component for high-voltage SF6 load switching equipment. It conforms to industry standards and offers robust performance for various applications. For further details or inquiries, please don’t hesitate to contact us.

Product Description: The WLV spring-operated mechanism is designed for use with indoor and outdoor high-voltage SF6 load switching equipment, specifically the XGN-12/630-25 and XGN-24/630-25 series. This mechanism utilizes a planar volute spring for controlling load switch operations, grounding procedures, and medium-level control with compressed springs. It provides three operational positions: closing, opening, and grounding, with mechanical interlocks for grounding and closing to prevent accidental operation.

Key Features:

Versatile Application: Suitable for both indoor and outdoor high-voltage SF6 load switching equipment, providing flexibility in various operational scenarios.
Compact Design: The mechanism is of moderate size, making it easy to install and use.
Compliance: It adheres to the standards GB3804 “3.6~40.5kV High Voltage AC Switch,” GB16926 “AC High Voltage Switch-Fuse Combination Device,” and GB1984 “High Voltage AC Circuit Breaker.”
Voltage Options: Available with rated voltage options of DC220V, 110V, 48V, and 24V.
Mechanical Life: Designed for a mechanical life of 10,000 operations.
Output Angle: Approximately 88°
