Description
Enclosure Platform
The Control E-House is built on a transportable, liftable, and maintainable steel structure providing centralized installation space for protection, control, communications, DC power, UPS, and station control equipment. Enclosure design is adapted around zoning, door configuration, cable entry openings, maintenance access, and equipment interface requirements — confirmed from the customer’s equipment list before manufacture.
Equipment Layout

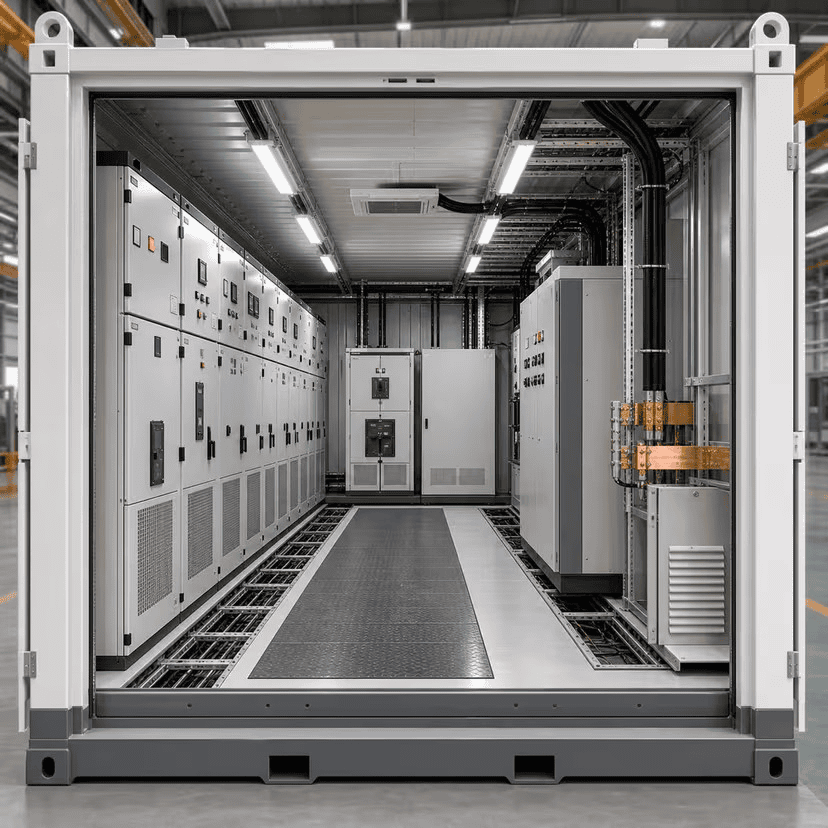

Internal layout must coordinate panel dimensions, front-access operation, rear-access maintenance, terminal wiring, fiber routing, inter-panel cabling, spare positions, and expansion space. ETENZ develops installation foundations, aisle widths, door swing, equipment stops, and cable tray paths from the customer’s panel list and station control diagram — the confirmed layout becomes the manufacturing basis.
Interface & Cable Management

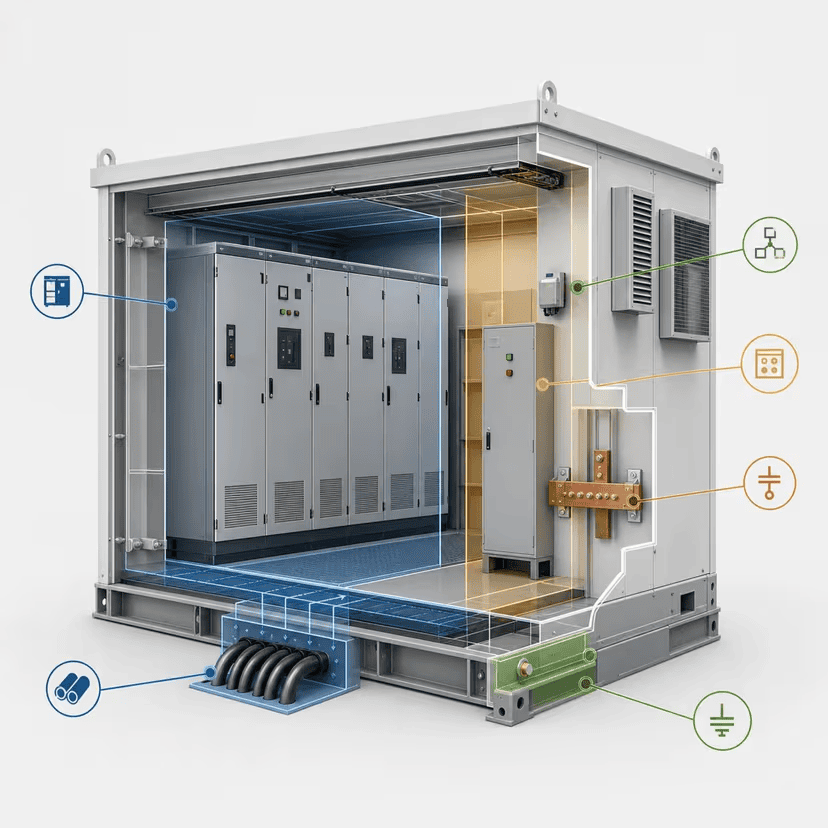

Cable entry openings, trays, fiber routes, terminal boxes, earthing bars, lightning protection, inter-panel cabling, and field communications interfaces can be pre-fabricated to installation-ready condition. Interface design is coordinated with site wiring and communications architecture — reducing field modification work at site connection.
Operating Environment
Secondary equipment is sensitive to temperature, humidity, condensation, dust, and power continuity. HVAC configuration follows equipment heat load, site climate, altitude, anti-corrosion grade, and unattended operation requirements. Air conditioning, ventilation, dehumidification, filtration, and environmental monitoring interfaces are coordinated with the enclosure design and confirmed before manufacture.
Manufacturing & Delivery

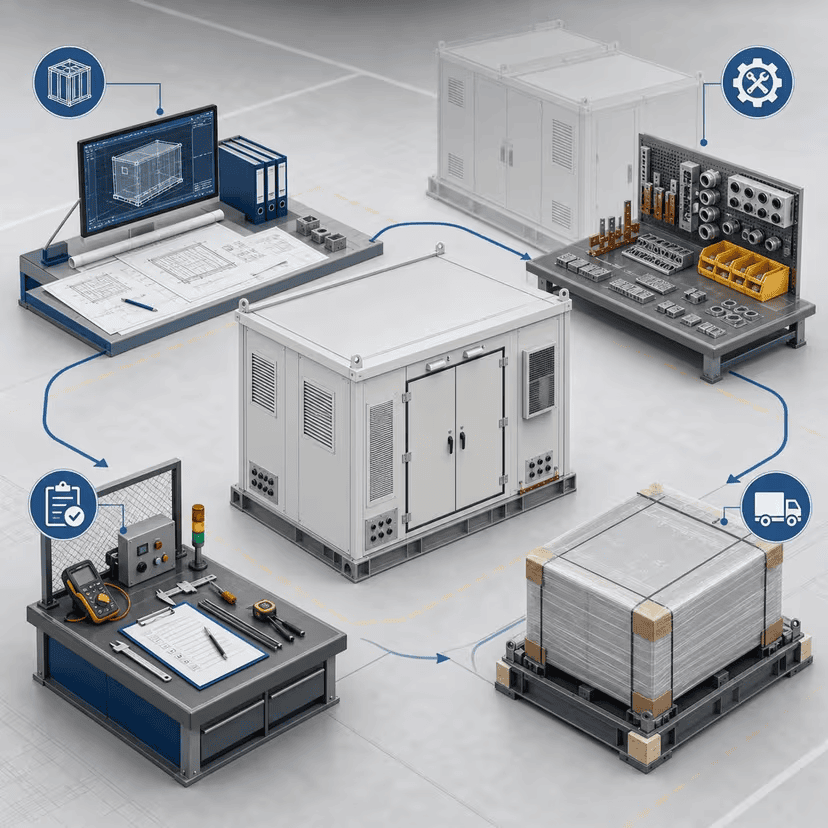

For protection relay manufacturers, automation equipment suppliers, system integrators, project delivery teams, and international delivery programs, ETENZ supports structural detailed design, prototype verification, batch replication, brand appearance, nameplate packaging, pre-shipment inspection, and delivery documentation. Batch programs can standardize enclosure types, interface libraries, and inspection procedures to improve multi-site delivery consistency.
Technical Specifications
| Parameter | Specification |
|---|---|
| System type | Protection, control, communications, station-control and automation panels |
| Control power | AC 220 / 230 V; DC 48 / 110 / 220 V |
| Communications interface | Fiber, Ethernet, RS-485 and IEC 61850-ready interfaces |
| Monitoring interface | SCADA / EMS / BMS / station-control interfaces |
| Module size | 20ft / 40ft or custom transportable module |
| Enclosure rating | IP54 / IP55 typical; NEMA 3R / 4 by market, up to IP65 (IEC 60529) |
| Anti-corrosion class | C3-C5 configurable (ISO 12944) |
| HVAC ambient | -20 to +55, ventilation / AC / dehumidification fit-out °C |
| Earthing and lightning | Equipotential bar, external earthing terminals and lightning interface reserved |
| Standards adaptation | IEC / IEEE / NEMA / UL interface documentation by project requirements |
| Structural design life | 25 years |
| Wall / roof panels | Roof 2.0 / wall 1.6–2.0 (galvanized steel) mm |
| Insulation | 50 (rock wool) mm |
| Frame | Channel / square-tube steel |
| Warranty | 12 months (extendable to 24, project-dependent) |
