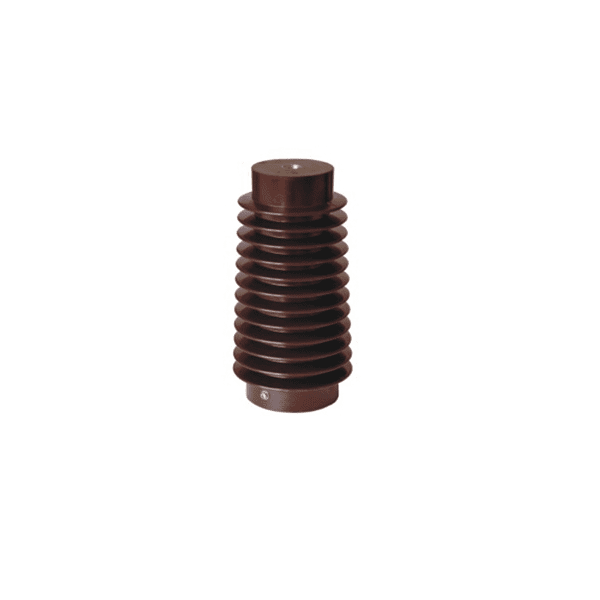

Description
The DXN Transducer is a high-quality and reliable choice for your Medium Voltage sensor needs. For more information or specific requirements, please do not hesitate to contact us. We are dedicated to delivering top-notch solutions tailored to your unique needs.
Key Features:
- Insulator and Sensor Design: Epoxy resin cast insulators are intricately integrated with sensors, connecting to charged display devices for use in switchgear applications.
- High-Quality Materials: Crafted from epoxy resin, the sensor undergoes a complex manufacturing process to ensure optimum performance.
- Advanced Manufacturing: The production process includes epoxy resin vacuum casting and APG epoxy resin pressure gelatin, resulting in a top-quality product.
- Versatile Specifications: Different specifications are available based on the electric current rating, catering to various needs both domestically and internationally.
- Testing Capabilities: The sensor can be effectively tested using X-ray instruments, bureau put instruments, and thermal cycle test machines.
Working Conditions:
- Altitude: The sensor is suitable for operation up to 1000m in altitude, with the exception of plateau areas where it should not exceed 3000m.
- Temperature Range: It can function within a temperature range of -10℃ to +40℃, with consideration of daily average temperatures.
- Relative Humidity: The daily average relative humidity should not exceed 95%, and attention should be paid to monthly averages.
- Clean Environment: The installation environment should be free from contaminants such as dust, smoke, corrosive or flammable air, vapor, and salt fog.
- Vibration and Impact: The sensor is not intended for locations with frequent vibration or physical impact.
- Moisture and Contamination: The product is capable of operating under conditions with dew and up to a II level of feculence.
Technical Data:
- Product Name: Sensor
- Product Model: DXN8B-24
- Material: Epoxy resin
- Rated Voltage: 24kV
- Height: Available in multiple dimensions (190, 200, 206, 210, 215, 220, 240)
- Manufacturing Craft: The Automatic Pressure Gelation (APG)
- Power Frequency Withstand Voltage: 68kV/1min
- Partial Discharge: < 3 pC
- Creep Distance: ≥ 480 mm
- Bending Exercise Load: 10,000 N

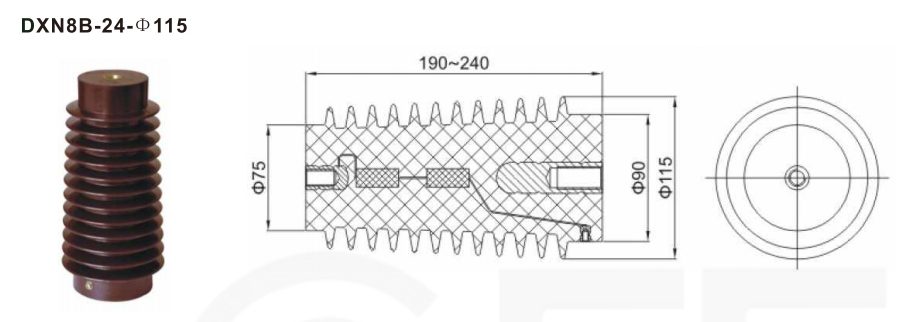

Drawing：
