ZN6-15/24-Φ85 Epoxy resin insulators

The capacitive insulator adopt technique of epoxy resin automatic pressure gelatin(APG). The bottom two screws act as conductors to induce current and transmit information to the live display.

It is often used on an earthing switch. Three sensors are connected to an earthing switch to provide power to the charged display. The sensor can be used as an insulator, but the screw should be grounded when it is used instead.

Category: Tag:


  • Epoxy resin cast insulators and sensors are seamlessly integrated with the charged display device, making them ideal for switchgear applications.
  • Manufactured with precision using epoxy resin, the product undergoes an intricate production process.
  • Its construction involves epoxy resin vacuum casting and APG epoxy resin pressure gelatin, ensuring top-notch quality.
  • The product’s integrity can be assessed using X-ray instruments, bureau put instruments, and thermal cycle test machines.
  • It offers various specifications tailored to the size of the electric current, and it has garnered recognition both domestically and internationally.

Working Conditions:

  • Altitude must not exceed 1000m, with even stricter limits for plateau areas, not exceeding 3000m.
  • The surrounding temperature should range from -10°C to +40°C, taking into account daily average temperature.
  • Daily average relative humidity should not surpass 95%, with control over monthly average relative humidity.
  • Installation environments should be free from dust, smoke, corrosive or flammable air, vapor, and salt fog.
  • There should be no frequent vibrations or impacts in the installation area.
  • The product is designed to function in conditions involving dew and mild contamination (Ⅱ feculence).

Technical Data:

  • Product Name: insulator
  • Product Model: ZN6-15/24-Φ85
  • Material: Epoxy resin
  • Rated Voltage: 15/24kV
  • Height: Available in various dimensions (190-245)
  • Craft: The Automatic Pressure Gelation (APG)

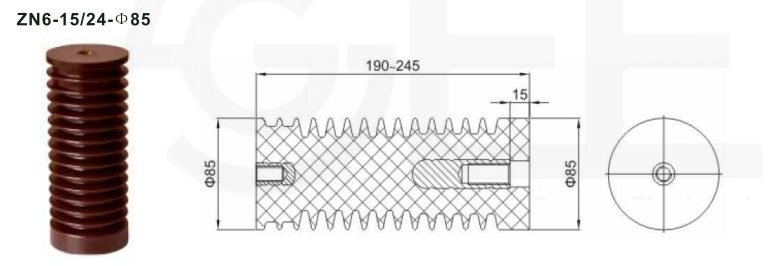

ZN6-15/24-Φ85 Epoxy resin insulators插图1
