New Energy Combined Transformer

New Energy Combined Transformer
Voltage level: 10-66 kV
Transformer capacity: 1000-20000kvA
Products include:

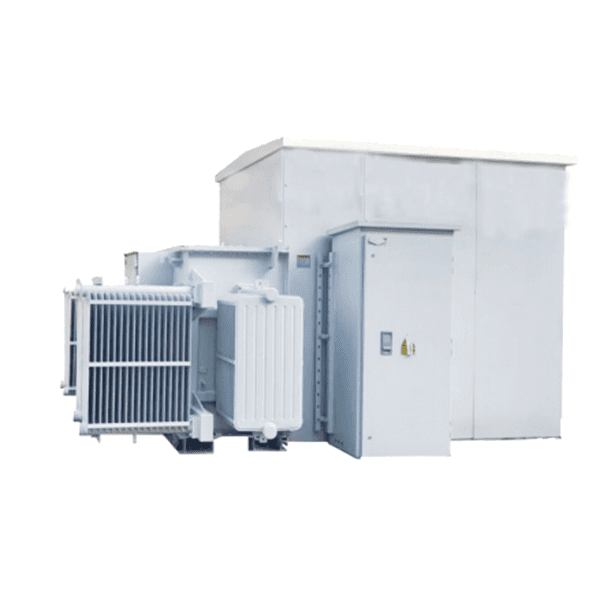

Combined Transformer for Photovoltaic Power Generation
Containerized Combined Substation for Photovoltaic Power Generation
Combined Transformer for Wind Power Generation
Dry-type Transformer for Offshore Wind Power Generation
Power Transformer for Offshore Wind Power Generation
Combined Transformer for Energy Storage

Category:

Description





Products:

  1. Combined Transformer for Photovoltaic Power Generation
    • American Transformer
    • Chinese Transformer
    • European Transformer
  2. Containerized Combined Substation for Photovoltaic Power Generation
    • European Transformer
  3. Combined Transformer for Wind Power Generation
    • American Transformer
    • Chinese Transformer
  4. Dry-type Transformer for Offshore Wind Power Generation
  5. Power Transformer for Offshore Wind Power Generation
  6. Combined Transformer for Energy Storage
    • American Transformer
    • Chinese Transformer

Standard Features:

  • Flexible design options: AC Station, L-H Combo & Inverter Package, Inverter Package
  • Minimizes construction and installation time and overall cost
  • Provides protection from harsh environments

Service Conditions:

  • Suitable for indoor or outdoor application
  • Air temperature: Max: +40℃; Min: -30℃
  • Humidity: Monthly average 95%; Daily average 90%
  • Altitude above sea level: Max installation altitude: 2000m
  • Max wind speed: 35M/s
  • Ambient air free from corrosive and flammable elements
  • Avoid frequent violent shake; specific inquiries beyond these conditions should be directed to the manufacturer’s technical department during order

Tests Include:

  • Voltage ratio, Polarity, and Phase relationship tests on each tapping
  • Resistance measurement of all windings
  • No-load current and losses measurement
  • Load losses measurement at rated current and frequency
  • Impedance voltage measurement
  • Induced over-voltage and separate source voltage withstand tests
  • Impulse voltage withstand test
  • Noise level test
  • Oil leakage test
  • Overload test at 150% rated current for one hour after temperature rise test and hot resistance measurement of (HV – LV)




Factory Photos

Material stacking area

assembly area

inspection area

finished product
