Oil Immersed Distribution Transformer Up To 35 kV

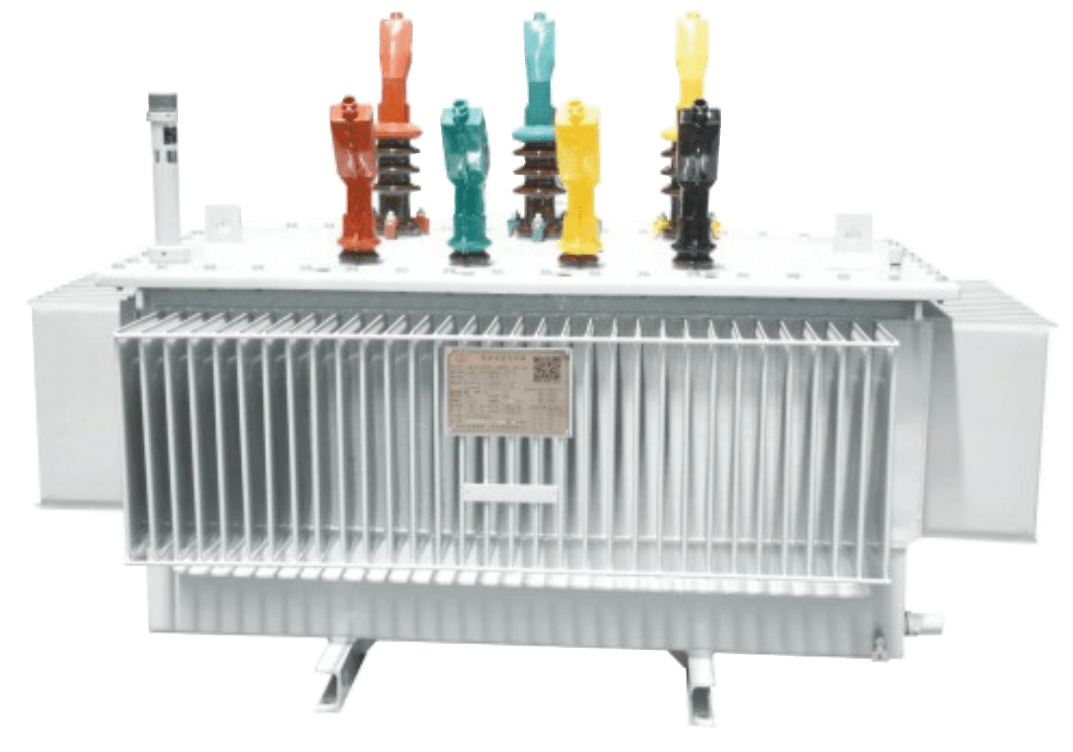

Oil Immersed Distribution Transformer Up To 35 kV插图

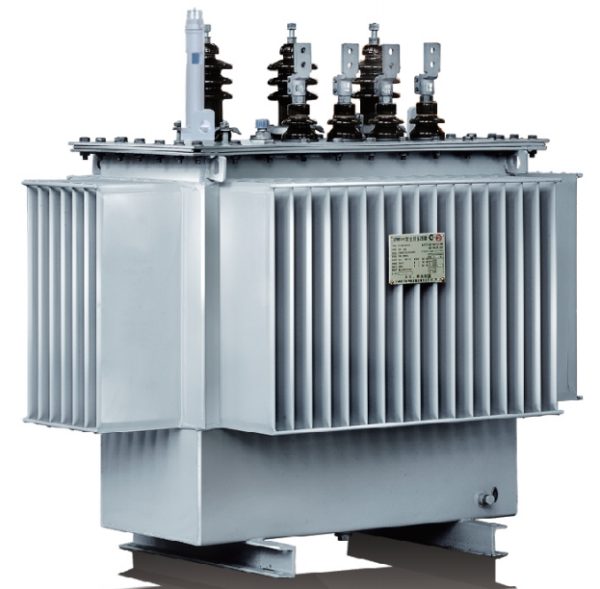

Oil Immersed Distribution Transformer Up To 35 kV插图1

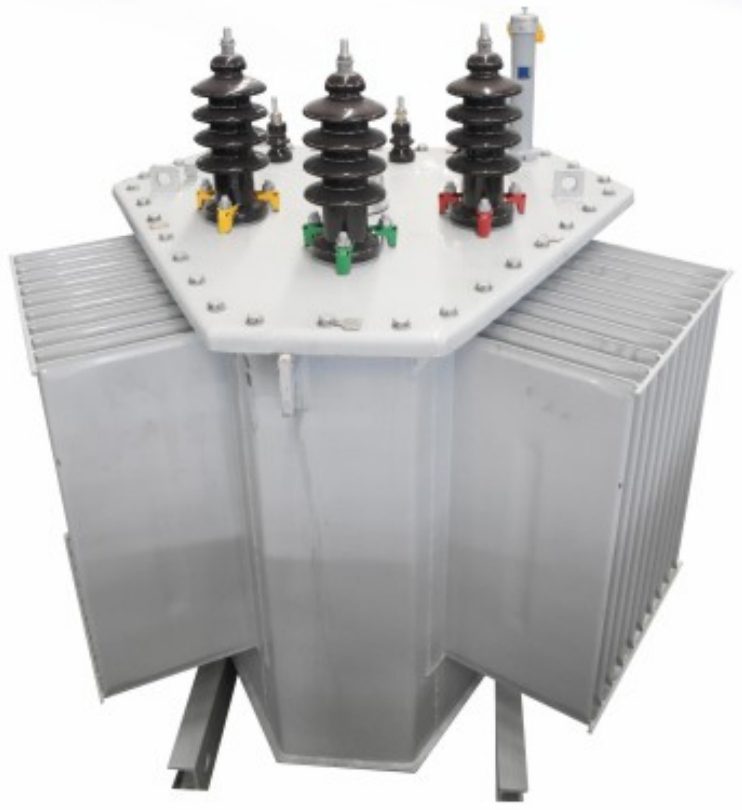

Oil Immersed Distribution Transformer Up To 35 kV插图2

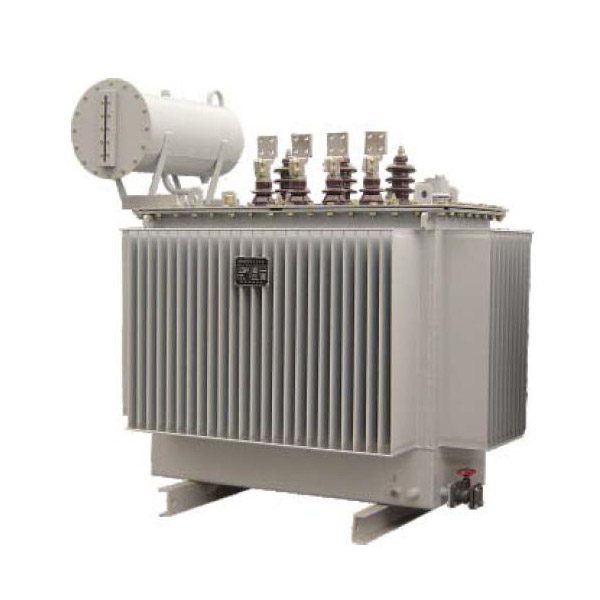

Oil Immersed Distribution Transformer Up To 35 kV插图3

Distribution transformer is usually pole mounted or installed in  distribution station for daily lighting and factory power whose LV output up to 0.4kV. The rating of transformer is up to 2500kVA,and primary voltage up to 35kV. Hermetically sealed distribution transformer manufactured by us are with corrugated radiators. The corrugated tank as a thermal expansion and contraction components enable the transformer oil completely isolated with the atmosphere . Distribution transformer with primary voltage range of6,10,10.5,20,35kV can be manufactured according to the requirement of client.

Category:

Description

Product Overview

Distribution transformer is usually pole mounted or installed in  distribution station for daily lighting and factory power whose LV output up to 0.4kV. The rating of transformer is up to 2500kVA,and primary voltage up to 35kV. Hermetically sealed distribution transformer manufactured by us are with corrugated radiators. The corrugated tank as a thermal expansion and contraction components enable the transformer oil completely isolated with the atmosphere . Distribution transformer with primary voltage range of6,10,10.5,20,35kV can be manufactured according to the requirement of client.

Product Features

  1. The distribution transformer is optimally designed with patented technology and software, and its performance parameters and requirements comply with Chinese national standards such as GB1094, GB/T6451, and GB/T25446.
  2. The core is made of high-quality cold-rolled grain-oriented silicon steel sheets produced by the step-lap technology of the automatic core lamination line from GEORG in Germany.
  3. The oil tank is of the corrugated type and fabricated by the ultra-corrugation tank wall production line of GEORG in Germany. The tank surface pretreatment liquid and coating powder adopt international top brands. The tank is degreased, pickled, phosphated, and electrophoresed by the automatic GEORG production line, and then powder sprayed and heat-solidified. The transformer tank has high corrosion resistance.
  4. The high-voltage winding of the distribution transformer is made of high-strength enameled wire or paper-insulated wire, and the low-voltage winding is made of high-strength enameled wire or paper-insulated wire and copper tape winding, which provides a uniform distribution of ampere-turns and a reasonable insulation structure, thus having a high ability to withstand short-circuits.
  5. The active part adopts a core free-hanging structure. The gasket is made of high-quality acrylate rubber, which can inhibit aging caused by sunlight and heat.

Technical Parameters

Rated Frequency 50HZ
Rated Voltage (H.V)6kV、6.3kV、10kV、10.5kv、11kV、15kV、20kV、35kV (L.V) 0.4kV
Tap Range +2×2.5%、±5%
Vector Group Dyn11、Yyn0
Insulation Level 6/0.4kV LI60AC25/AC5kV
10/0.4kV LI75AC35/AC5kV
20/0.4kV LI125AC55/AC5kV
35/0.4kV LI200AC85/AC5kV

Factory Photos

Material stacking area

Oil Immersed Distribution Transformer Up To 35 kV插图4

assembly area

Oil Immersed Distribution Transformer Up To 35 kV插图5

inspection area

Oil Immersed Distribution Transformer Up To 35 kV插图6

finished product

Oil Immersed Distribution Transformer Up To 35 kV插图7
