35kV 630A T Cable Connector

General:

35kV 630A T Cable Connector provides a fully screened and fully submersible
connection when mated with the proper bushing or plug. For connection of polymeric
cable to transformers, switchgear, motors, and other equipment with a premoulded
separable connector. Optional capacitive test point allows for an easy check of
the circuit status or installation of a fault indicator. These 36kV 630A T Cable
Connector are made by EPDM with the good quality

Category:

Description

Ratings Overview:

Current Rating
Continuous nominal current 630A
24hours overload 1000A
Dynamic short circuit 27kA/3s
40kA/0.2s

Continuous Voltage Ratings:

Description Parameters (kV)
Continuous operating voltage 35
Maximum Rating Phase-to-Phase 40.5
Maximum Rating Phase-to-ground 26
AC withstand voltage,15min 117
DC withstand voltage,15min 104
Impulse withstand voltage 200
Minimum Corona Voltage Level 26

Kit Contents:

  • Deadbreak T Body
  • Insulation
  • Conductor cable lug
  • Adaptor
  • Two head screw
  • Clearing Paper
  • Silicone Lubricant
  • Installation Instruction Sheet
  • Quality Certificate

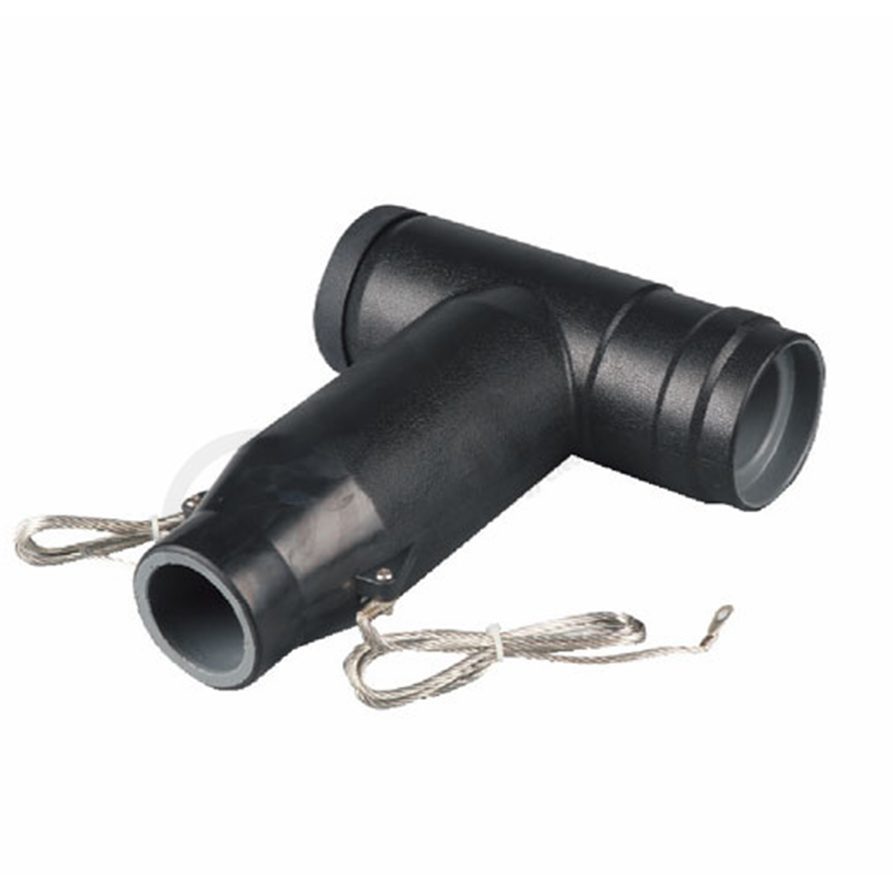

35kV 630A T Cable Connector插图1
