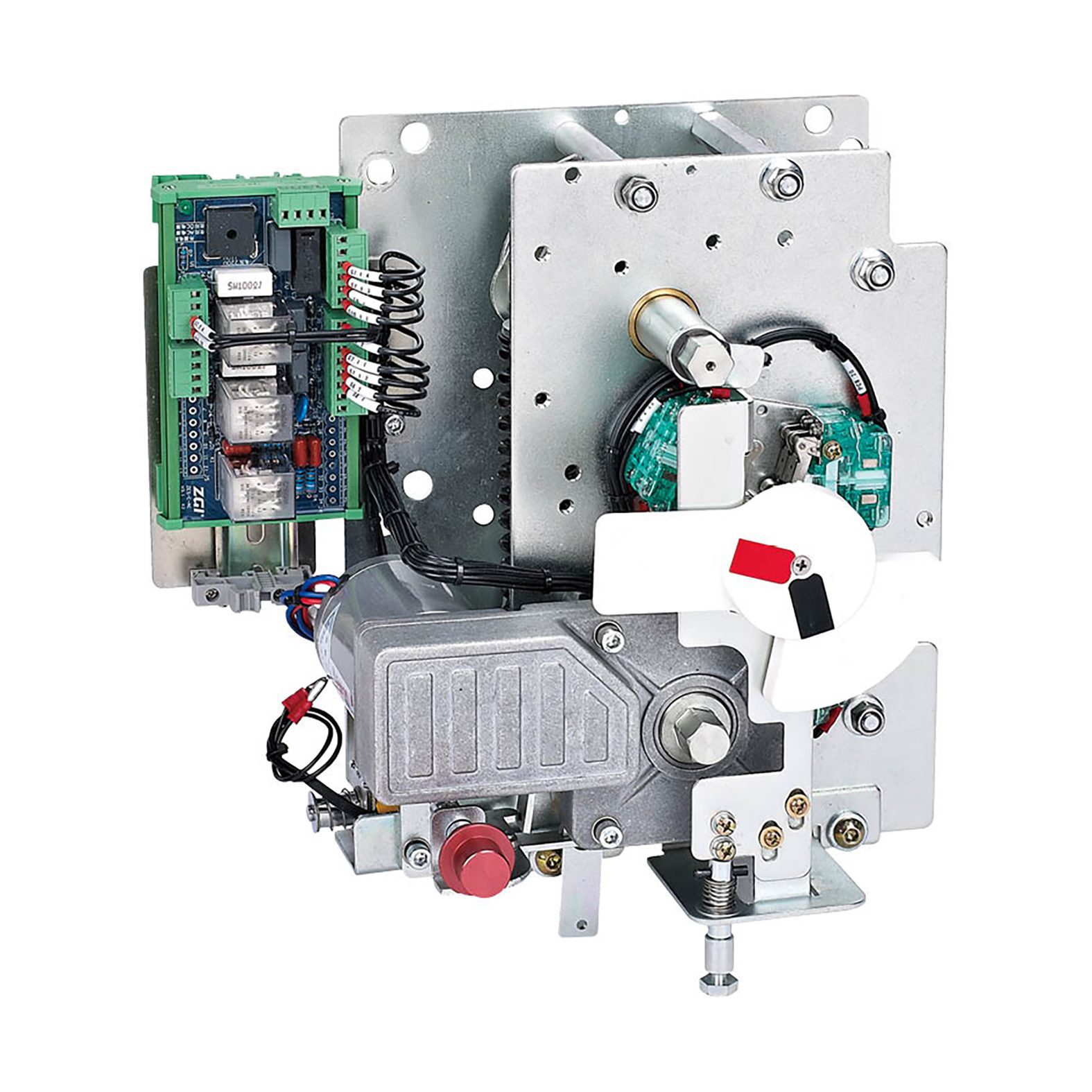

WLG Type Spring-Operated Mechanism for Indoor High-Voltage SF6 Load Switch

The WLG type spring-operated mechanism is designed to enhance the performance and functionality of indoor high-voltage SF6 load switches. Its compliance with industry standards ensures reliability and safety in your operations. For further information or inquiries, please feel free to contact us.

Description

Description

Product Description: The WLG type spring-operated mechanism, designed as an outgoing mechanism, is specifically tailored for use with XGN-12/T630-25 and XGN-12/T1250-31.5 indoor high-voltage SF6 load switches. It is intended for use in indoor switchgear with a rated voltage of 12kV. This series of mechanisms operates on the spring release principle, offering three working positions: closing, breaking, and grounding. The mechanism is characterized by its moderate size, ease of installation, user-friendliness, and adaptability.

Key Features:

Versatile Compatibility: Suitable for XGN-12/T630-25 and XGN-12/T1250-31.5 indoor high-voltage SF6 load switches.
Three Operating Positions: Provides operational modes for closing, breaking, and grounding.
Fuse Release Function: Equipped with a fuse release feature for added convenience.
Coil Integration: Includes both shunt release and overload current release coils.
Compliance: Meets the relevant requirements of industry standards, including GB3804 “3.6kV~40.5kV High Voltage AC Load Switch” and GB16926 “AC High Voltage Load Switch-Fuse Combination Apparatus.”
